Available for ImportFire-Resistant Power Cable PBPng(A)-FRHF for Safe Electrical Installations
Manufacturer:LLC "NPO "PZSK"
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description

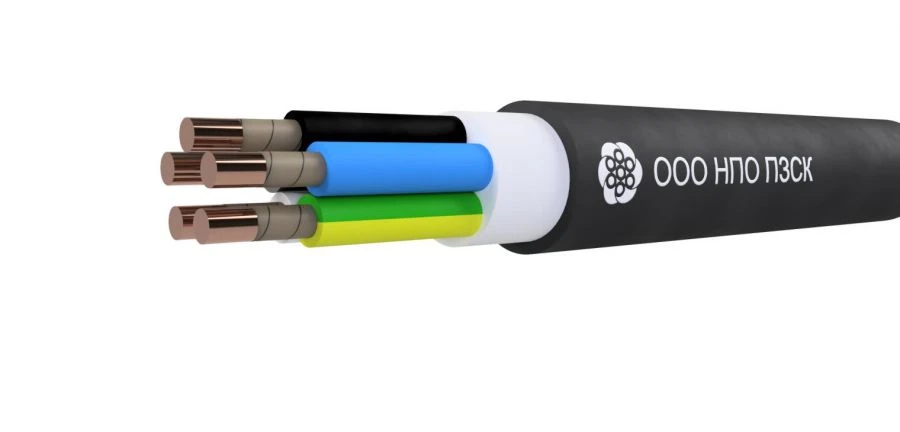

Cable PBPng(A)-FRHF power fire-resistant with copper conductors, with fire-resistant barrier on TPZ, with insulation and outer sheath made of polymer compositions, not containing halogens, armoured with galvanized steel tapes, not spreading combustion in group laying and not emitting corrosive gaseous products during burning and smouldering, designed for transmission and distribution of electrical energy in electrical installations for rated alternating voltage of 0.6 and 1 kV with rated frequency up to 50 Hz.
The cable is manufactured for general industrial application and is intended for stationary laying in the air, in closed rooms, in the ground, in cable collectors for single laying, including in explosive zones when supplied to the domestic market and for export, including countries with tropical climates.
The cable is manufactured for general industrial application and is intended for stationary laying in the air, in closed rooms, in the ground, in cable collectors for single laying, including in explosive zones when supplied to the domestic market and for export, including countries with tropical climates.
Specifications
Mark
PBPng(A)-FRHF, PBPng(A)-FRHF-HL
Design
Single-wire round (ok); multiwire round (mc), multiwire sector (ms)
Cable shape
Round
Core material
Copper
Insulation material
halogen-free polymer composition
Sheath material
halogen-free polymer composition
Climatic version
UHL, T, XL
Rated AC voltage
1 kV
Frequency
SBVVBG
Fire hazard class
P1b.1.1.1.2.1.
Operating temperature
-50...50 °C
Number of conductive cores
1,2,3,4,5
Nominal cross-section of conductive cores
400 mm²
Long-term permissible heating temperature of cable cores
70 °C
Availability of reservations
no
Availability of metal screen
no
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
