Available for Import

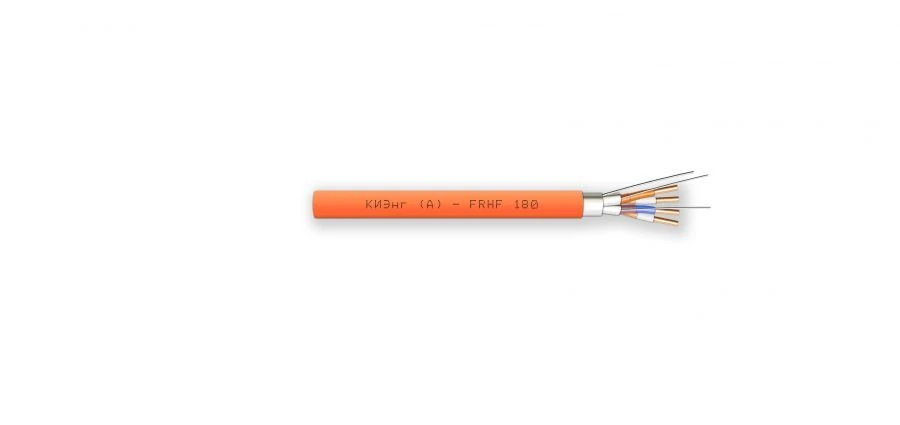

Fire-resistant cable with twisted pair of conductors of KIENG(A)-FRHF 2x2x1,37 mm grade

Communication Cables & Wires

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Fire-resistant cable with twisted pair of conductors of KIENG(A)-FRHF 2x2x0,50 mm brand Fire-resistant cable with twisted pair of conductors of KIENG(A)-FRHF 2x2x1,00 mm mark Fire-resistant cable with twisted pair of conductors of KIeng(A)-FRHF 2x2x0,64 mm mark Fire-resistant cable with twisted pair of conductors of KIENG(A)-FRHF 2x2x1,12 mm mark Fire-resistant cable with twisted pair of conductors of KIeng(A)-FRHF 2x2x0,80 mm mark

Fire-resistant cable with twisted pair of conductors of KIeng(A)-FRHF 2x2x1,75 mm grade

Description

Fire-resistant cable for data transmission systems with two twisted pairs of copper single-wire conductive cores with nominal diameter of 1,37 mm, insulated with fire-resistant organosilicon rubber, winding of cores with PMA film in each pair, with separately shielded pairs laminated with aluminium foil and common shield from laminated aluminium foil and sheath from halogen-free polymer composition.

Specifications

Material of conductive cores Copper

Insulation material of conductive cores ceramic rubber

Outer sheath material halogen-free

Electrical resistance of the core 12.6 ohm

Electrical insulation resistance 5000000000 ohm

Electrical capacity -850000000

Test voltage between conductors 700 V

Attenuation factor 0.07

Number of conductive cores 4 pc

Nominal cross-section of conductive cores 1.5 mm2

Rated AC voltage 0.3 kV

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
