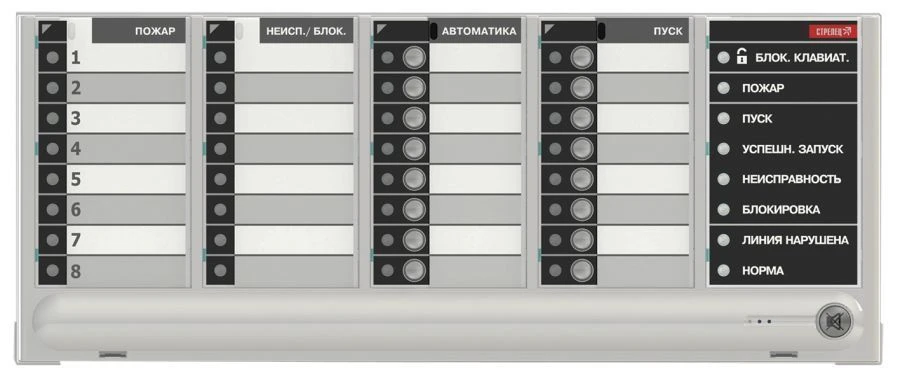

Fire Automation Control Unit BUPA-I version L for Safety Management

Fire automation control unit BUPA-I esp. L is designed for status indication and control of fire automation zones, notification zones and groups of outputs of the integrated security system "Strelets-Integral" (ISB). The device has 32 three-colour (red, green and yellow) LED indicators and 16 buttons to display the status and control 8 fire automation zones, notification zones or groups of ISB outputs.

The device also has 8 single-colour LED indicators displaying the generalised status of the ISB fire automation zones and a sounder. The device has a "Sound" button to switch off the sound signalling. The device is powered from an external DC source with voltage from 9 to 28 V.

The device consumption current at 12 V voltage is not more than 170 mA, at 24 V voltage - not more than 95 mA.
