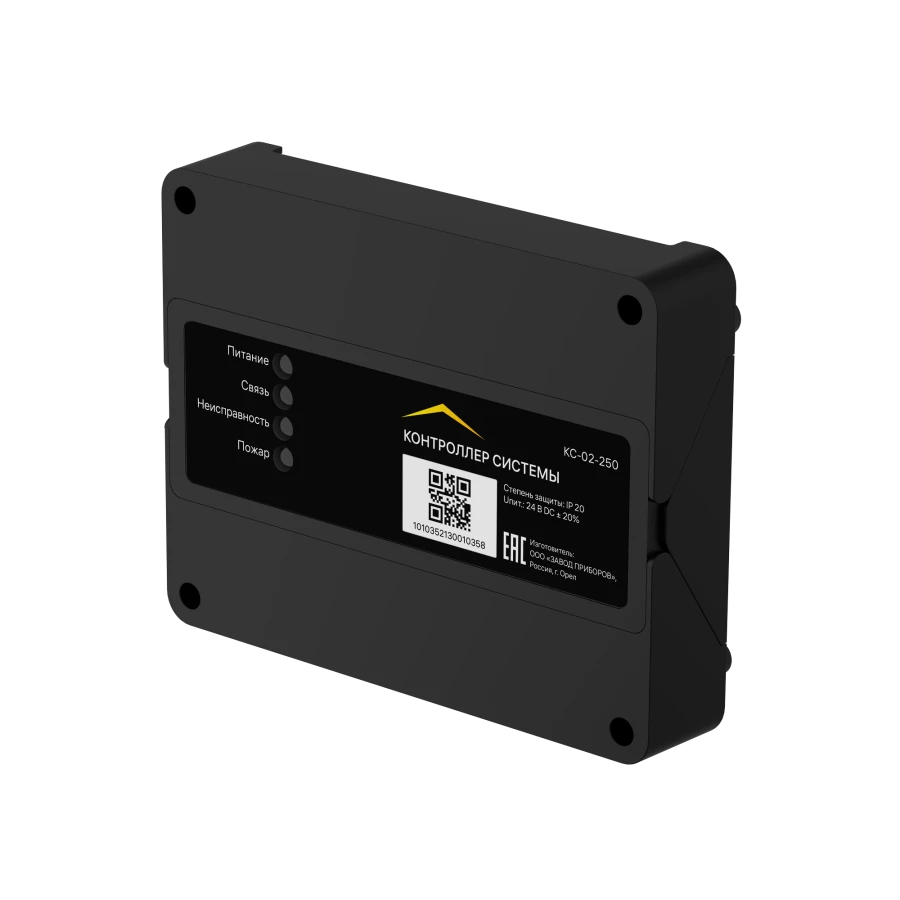

Fire alarm system controller KS-02-250 "RUBETEK"

Fire Safety Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

System Controller (SC) is designed for centralised protection of buildings and structures from fires. KS is connected to the devices receiving and controlling fire and fire control addressable analogue "RUBETEK" and works as part of an automatic fire alarm system, with which detectors provide information compatibility.

Technical Specifications

Power supply from a DC source with voltage	24 V
Own consumption current	Not more than 0.15 A
Communication interface	RS-485, PLC, Wi-Fi
Number of occupied address slots (RS-485 communication interface)	1 pc
Number of RS-485 interfaces	2 pc
Maximum interface length between RS-485 segments	100 m
Number of controllers connected to the control panel via RS-485 interface	0...32 pc
Number of PLC interfaces	2 pc
Maximum length of the PLC interface	3000 m
Maximum PLC load current per channel	0.3 A
Number of addressable devices connected to the controller via PLC interface	0...250 pc
Number of freely programmable inputs	2 pc
Maximum voltage at the freely programmable input	20 V
Maximum line monitoring current of a freely programmable input	0.0045 A
Number of controlled dry contact outputs	2 pc
Maximum switched current at each dry contact output	2 A
Number of outputs with line open-circuit and short-circuit monitoring	2 pc
Maximum switched current at each output "OUT1" and "OUT2"	0.45 A
Operating temperature range	-10...55 °C
Relative humidity at + 40 deg. ?	0...93 %
Degree of enclosure protection	IP20
Dimensions (L x W x H), mm	160x125x36
Weight	0.3 kg
Average service life	10 a
Average MTBF	60000
Probability of failure-free operation in 1000 h	0.98

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
