Fire Alarm Relay Module MR-1 "RUBETEK" for Reliable Fire Safety Systems

Fire Alarm Detectors

Manufacturer: RUBETEK RUS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

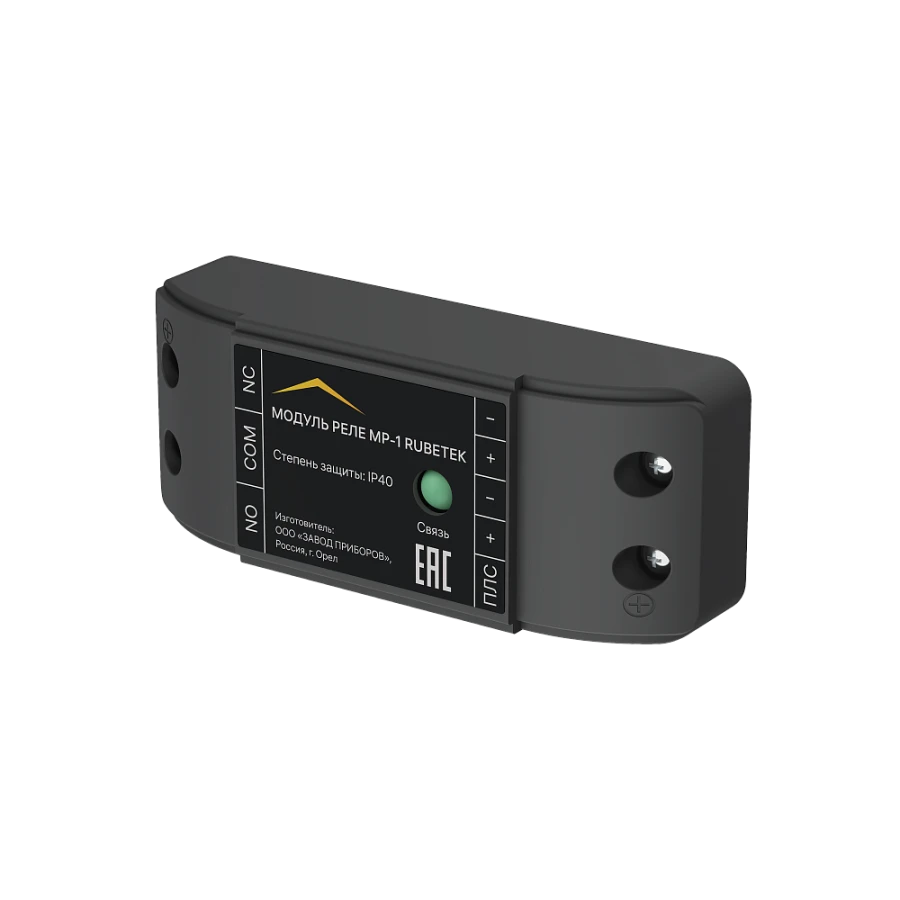

Module relay MR-1 "RUBETEK" (hereinafter referred to as the module) is designed to connect to the device receiving and controlling fire addressable analogue PPK-02-250 "RUBETEK" (hereinafter referred to as PPK) or to the controller system KS-02-250 "RUBETEK" (hereinafter referred to as KS) smoke exhaust fan control cabinets SHU-DU and other equipment controlled by dry contact (hereinafter referred to as SC). The module is designed for indoor installation in places protected from atmospheric precipitation, aggressive media and dust, as well as in especially explosion and fire hazardous premises.

Specifications

Communication channel to the CCP or CW

PLS.

Number of address slots occupied

1 pcs

Nutrition

From PLC

Average current consumption in standby mode

0.0003 A

Maximum current consumption

0.028 A

At 250 V

0.3 A

At 30 V

2 A

AC voltage (AC)

250 V

Constant voltage (DC)

30 V

Number of SC outputs

1 pcs

Light indication

Got it

Tamper switch (tamper switch)

Got it

PLC terminals

0.35...1 mm²

SC terminals

0.2...1 mm²

Operating temperature range

-10...55 °C

Degree of enclosure protection

IP40

Dimensions (L x W x H), mm

80x32x21

Weight, not more

0.03 kg

Average service life

10 year

Average MTBF

60000

Probability of failure-free operation in 1000 h

0.98

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
