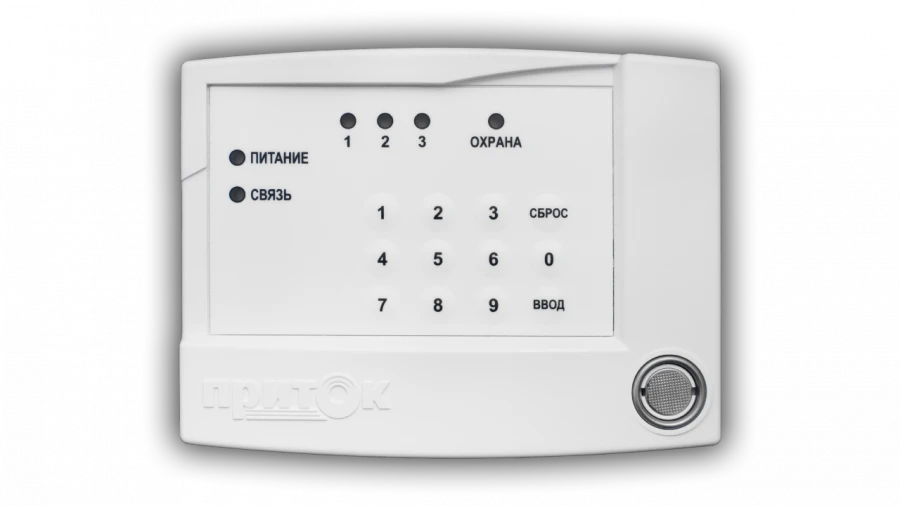

Fire alarm control panel PPKOP 011-8-1-053K Pritok-A-4(8)

The device monitors the status of three alarm loops and transmits alarm and fire notifications to the automated workplaces of the centralised monitoring station on the basis of the "Automated fire alarm system Pritok-A".

Arming and disarming is performed by means of personal electronic identifiers - Touch Memory keys (hereinafter referred to as TM key), built-in keypad or external keypad of the PPKOP.

The device is connected via busy subscriber telephone line to repeaters Pritok-A, Pritok-A-F, Pritok-A-Y, TCP/IP-07 communicator. The communication channel with the repeater is bidirectional, with protection against device substitution.
The device has a built-in telephone filter, designed to separate the tone frequency signals of telephone conversations and carrier frequency of 18 kHz. .
