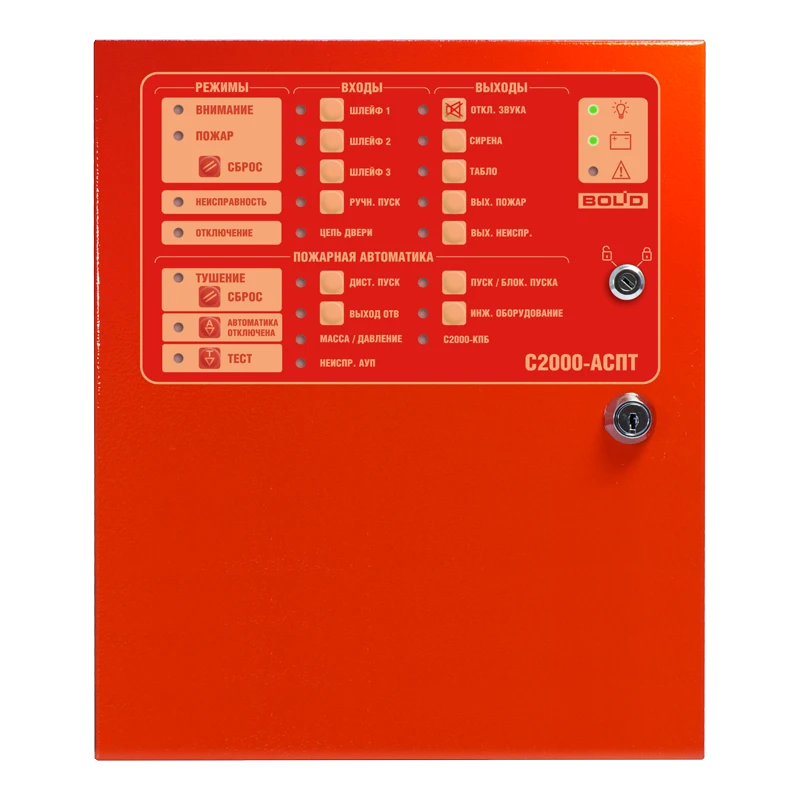

Fire Alarm and Control Block "S2000-ASPT" for Fire Suppression Systems
Manufacturer:
BOLID CJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Designed to operate as part of an automatic gas, powder, aerosol or fine spray fire extinguishing system.
The unit can be operated only under the control of a network controller (fire alarm control panel "S2000M" or fire alarm control panel "Sirius").
Sirius fire control panel), together with the indication unit of the S2000-PT fire extinguishing system.
The unit can be operated only under the control of a network controller (fire alarm control panel "S2000M" or fire alarm control panel "Sirius").
Sirius fire control panel), together with the indication unit of the S2000-PT fire extinguishing system.
Specifications
Main source supply voltage (AC, (50±1) Hz.)
130 to 250V
Backup power supply voltage (DC, built-in batteries)
22 to 28 V
Power consumption from main power source
30 V*A
Number of inputs for connecting alarm loops
3 pcs
Number of remote start inputs
1 pcs
Number of process sensor inputs
3 pcs
Number of outputs without monitoring, dry contact (100 VDC, 0.1 A; Fire, Fault)
2 pcs
Number of outputs without supervision, "dry contact - switching" (128 V AC, 0.5 A; 28 V DC, "NO-NC-C")
1 pcs
Number of outputs with control (24±2V, 1 A, up to 2 A within 2 s; display)
3 pcs
Number of supervised outputs (24±2V, 1 A, up to 2 A within 2 s; siren)
1 pcs
Number of supervised outputs (24±2V, 1 A, up to 2 A for 2 s; starting circuit)
1 pcs
Number of "S2000-KPB" slave units
No more than 16
Protection degree of the shell according to GOST 14254-2015
IR30
Operating temperature range
minus 10 to +50 °C
Overall dimensions
305×255×95 mm
Weight of the unit (without battery)
No more than 6 kg
Average service life of the remote control
10 year
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
