Field tillage cultivator KUPE-8PV
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

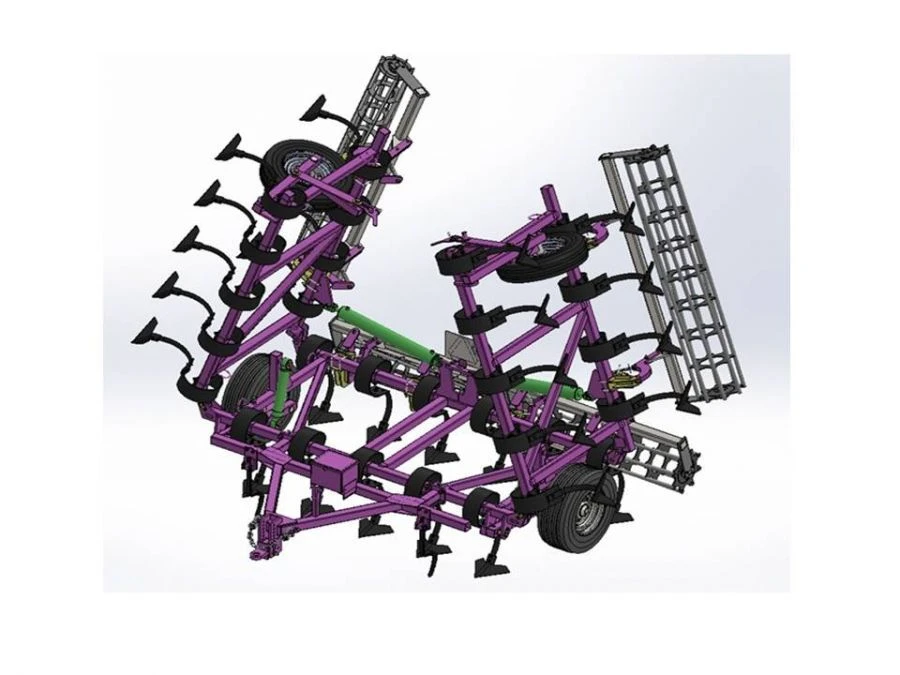

Cultivator KUPE-8PV is designed for continuous pre-sowing and fallow tillage with simultaneous destruction of weeds and crushing of clods.
The cultivator provides soil tillage to a depth of up to 12 cm, not clogged with stones, flagstones and other obstacles under the following conditions:
- moisture of the cultivated soil layer - up to 22 %;
- specific resistance of the soil - up to 0.06 MPa;
- field slope - not more than 8°;
The design of the cultivator uses working tools - cultivator tines (working width 330 mm), mounted on S-shaped stands in two rows.
The design of the tine with a stand creates micro-vibrations during cultivator operation, which contributes to:
- crumbling of clods;
- better seedbed preparation;
- self-cleaning of the working tools.
Optionally the cultivator is equipped with:
- a set of rippers;
- a set of spring harrows;
- plate rollers;
- tube rollers.
The cultivator provides soil tillage to a depth of up to 12 cm, not clogged with stones, flagstones and other obstacles under the following conditions:
- moisture of the cultivated soil layer - up to 22 %;
- specific resistance of the soil - up to 0.06 MPa;
- field slope - not more than 8°;
The design of the cultivator uses working tools - cultivator tines (working width 330 mm), mounted on S-shaped stands in two rows.
The design of the tine with a stand creates micro-vibrations during cultivator operation, which contributes to:
- crumbling of clods;
- better seedbed preparation;
- self-cleaning of the working tools.
Optionally the cultivator is equipped with:
- a set of rippers;
- a set of spring harrows;
- plate rollers;
- tube rollers.
Specifications
Type of product according to PP RF 616
Cultivators
Type of product according to PP RF 616
Cultivators
Material of frame structures
Steel
Material of working elements
Steel
Type
agricultural machinery and equipment for soil tillage
Width
8250 mm
Height
960 mm
Length
5090 mm
Working width
8.5 m
Additional equipment
Roller 410mm, 8 pcs, double row spring harrow 4 pcs.
Service life, at least
8 a
Overall dimensions (DxWxH), mm
5090x8250x960
Capacity per shift, m3/shift
80
Capacity per hour
10
Distance between working elements
57 mm
Width of cultivator tines
330 mm
Number of working bodies
32 pc
Frame construction
3-sectional with folding
Transferring the cultivator to working/transport position
hydraulic batch folding
Weight
2000 kg
Transport speed
20
Type of aggregation
semi-trailer
Tires
6.5.00 r16
Overall dimensions in transport position
4400x3890x4230
Track
2860 mm
Minimum ground clearance
250 mm
Traction class of the tractor to be coupled
3 t
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
