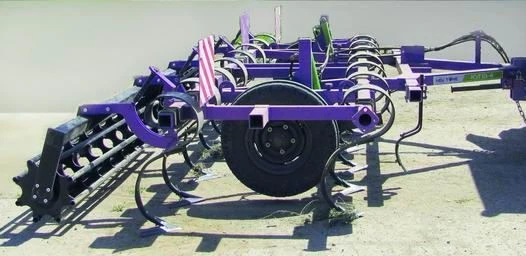

Field cultivator for continuous tillage KUPE-4PV

Cultivator is designed for continuous pre-sowing and fallow tillage of soil with simultaneous destruction of weeds and crushing of clods.
The cultivator provides soil tillage to a depth of up to 12 cm, not clogged with stones, flagstones and other obstacles under the following conditions:
- moisture of the cultivated soil layer - up to 22 %;
- specific resistance of the soil - up to 0.06 MPa;
- field slope - not more than 8°;
The design of the cultivator uses working tools - cultivator tines (working width 330 mm), mounted on S-shaped stands in two rows.
The design of the tine with a stand creates micro-vibrations during cultivator operation, which contributes to:
- crumbling of clods;
- better seedbed preparation;
- self-cleaning of the working tools.
Optionally the cultivator is equipped with:
- a set of rippers;
- a set of spring harrows;
- a set of harrows BZSS-1 on the linkage;
- plate rollers;
- tube rollers.
