Available for Import
Feed shelf "Flow" NERV.468722.005
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

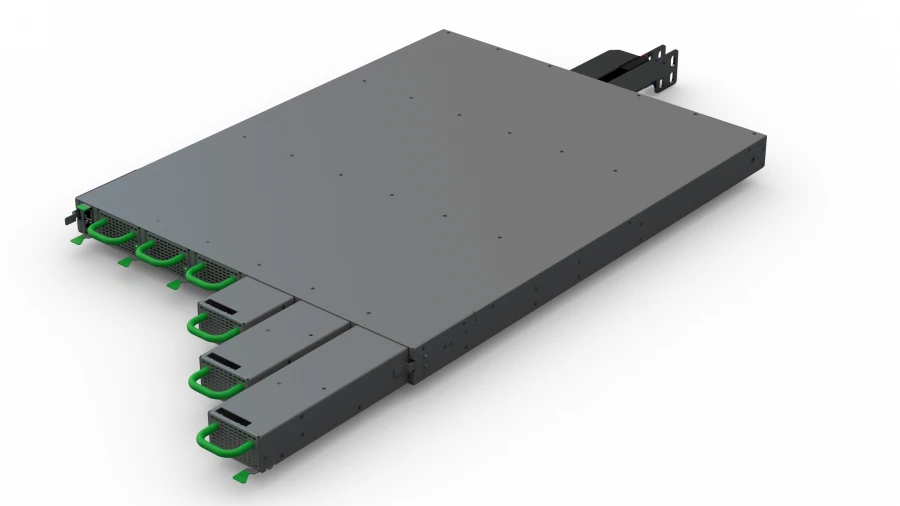

The "Potok" power supply shelf manufactured by GAGAR>N is designed for power supply of server equipment in the server cabinet with nominal voltage of 12 V DC. Power is supplied from AC 220V/380V; 50Hz (1 or 3-phase power supply). The "Flow" power shelf has two power inputs that are used to provide dual-input power, the design provides overcurrent and short-circuit protection on the output. Power shelf "Potok" has one power output, which are used to provide power to server equipment.
The "Potok" power shelf includes 6 independent rectifier modules and a monitoring module, the possibility of indicating the state of the VM and the monitoring module is provided.
The "Potok" power shelf includes 6 independent rectifier modules and a monitoring module, the possibility of indicating the state of the VM and the monitoring module is provided.
Specifications
Power supply voltage
Range 180 V to 264 V per phase for single-phase connection; 312 V to 457 V for three-phase connection.
Depth
890.5 mm
Width
546 mm
Height
45.5 mm
Hot-swap support
Armoured glass
Output current
1220 A (+12.3 V); 6 A (220 V)
Output voltage
+12,3 V; 220 V
Coefficient of efficiency (COP)
Not less than 94%
Output connector
Open Rack v2
Additional output connector
IEC 60320 C13 - 2pcs.
Form factor
1 OU
Rated output power
15 kW in "5+1" redundant mode
Maximum input current
19.7 A per phase
Input voltage frequency range
47 Hz - 63 Hz
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
