Express-analyser Raman MixSplitter

MixSplitter is a high-performance CR (Raman) tool for automatic scanning and element recognition of powder mixtures, suspensions and slurries with an accuracy of 1%. The scan provides the user with information on the constituent components of the mixture and their percentages.

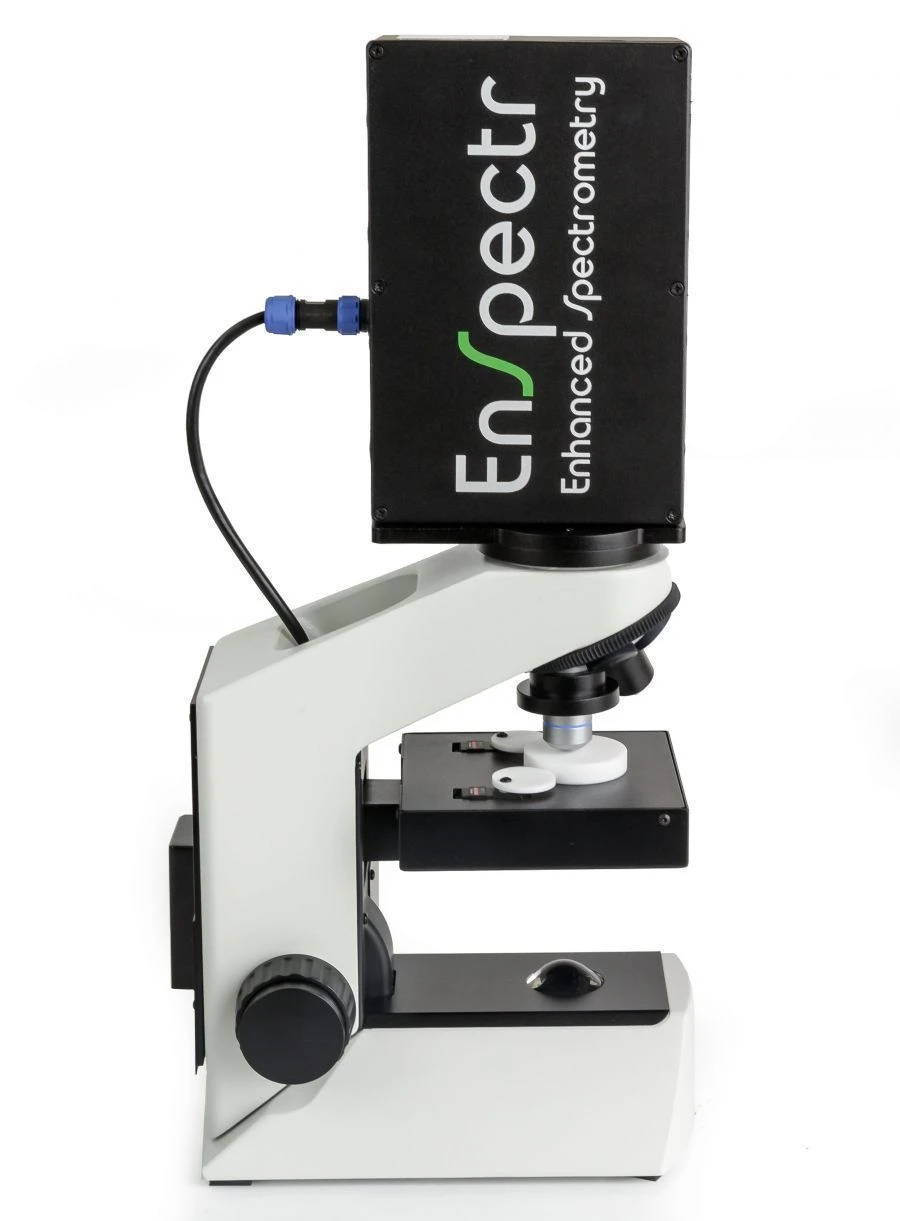

MixSplitter is developed on the basis of a microscope and Raman Express analyser "Inspectr" R532. The system is equipped with a motorised slider for three-axis scanning of the sample. Professional software allows in automatic mode to carry out spectral measurements synchronised with step-by-step scanning of the sample, as well as identification of unknown substances and output of the results of statistical data analysis.
-Spectral range: ~200 - 3600 cm-1
-Laser532 nm, power: ~30 mW
-Microscope objective:50x
-Spatial resolution: 20 µm
-Particle size limit: > 0.5 µm
-Maximum number of steps:3000
