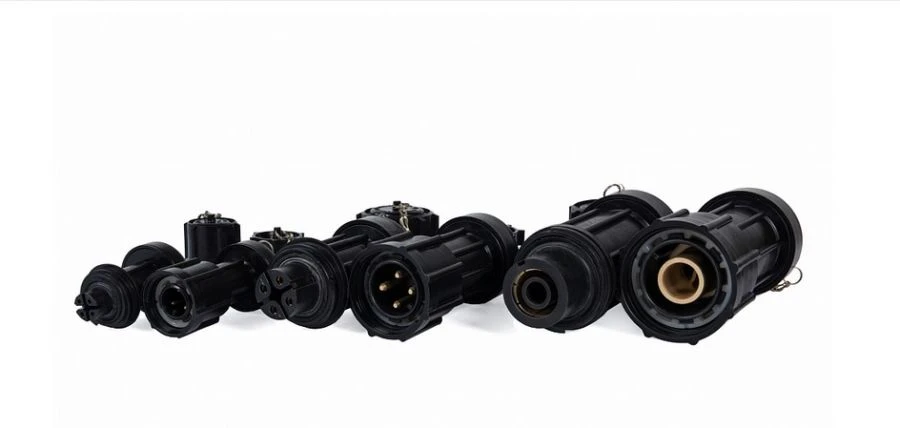

Explosion-proof wall connectors BPN16

The connectors are designed for quick connection and disconnection of cable network segments, various electrical units, plants and machines between each other and power sources in ground stationary and mobile electrical installations with voltage up to 440 V DC and AC with frequency up to 60 Hz. In this case:
- stationary explosion-proof connectors (panel plugs GDP and sockets VRP, cable explosion-proof connectors (portable) plugs VVK and sockets VRK must have the explosion protection level "explosion-proof electrical equipment" - (1) with the type of explosion protection "protection type "e" according to GOST R IEC 60079-7-2012 and have the explosion protection marking 1Ex e IIC T4(5,6) Gb X, Ex tb IIIC T80°?....T95°C Db, Ex tb IIIC T130°C Db .
The connectors are designed for operation in hazardous areas 1 and 2 of subgroups IIA, IIB, IIC. Rated currents of connectors shall be 16, 25, 32, 40, 63, 160, 250, 400 A.
