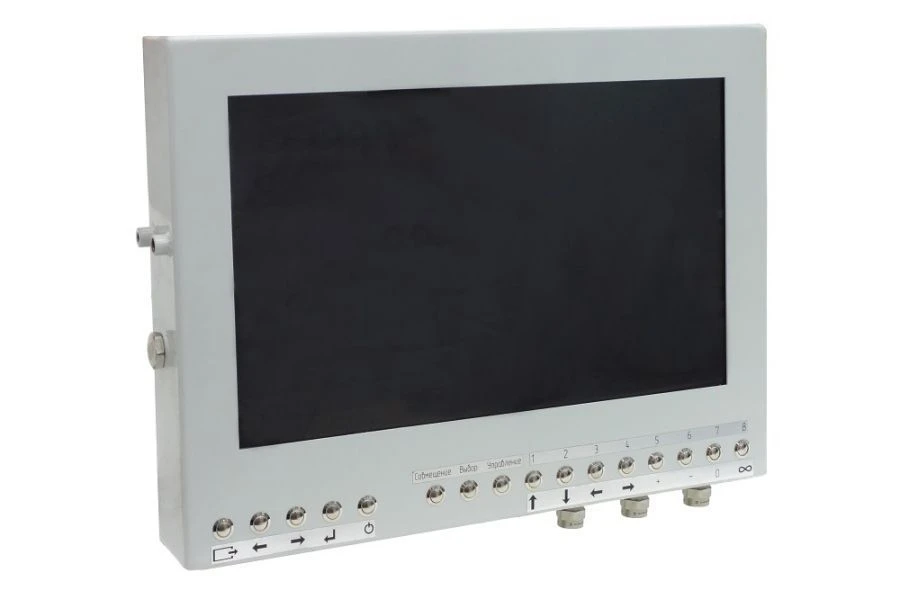

Explosion-proof video viewing device Relion-VPU-Exm-M-24

Designed to display video information coming from the video server, without the use of additional receiving and transmitting equipment. It is possible to connect intrinsically safe control devices, such as remote Relion-VPU-P-M/N. They allow to control the display of cameras on the screen of the GPU, switch from displaying one camera to another or display the image from a certain number of video cameras, enlarge the image, etc. The control panel allows to control the display of cameras on the screen of the GPU. The highest degree of dust and water protection IP66/IP68. Explosion protection marking 1 Ex e ia mb IIC T6 Gb X / Ex ia mb IIIC T85°? Db / RP Ex e ia mb I Mc X The welded construction of the GPU provides the necessary rigidity and mechanical strength of the product. The TLU can be equipped with a bracket that allows it to be mounted on the wall at a certain angle. The bracket is also made of steel. Without using the bracket, the FPU is mounted on a flat, level surface, excluding the possibility of tilting relative to the mounting plane
