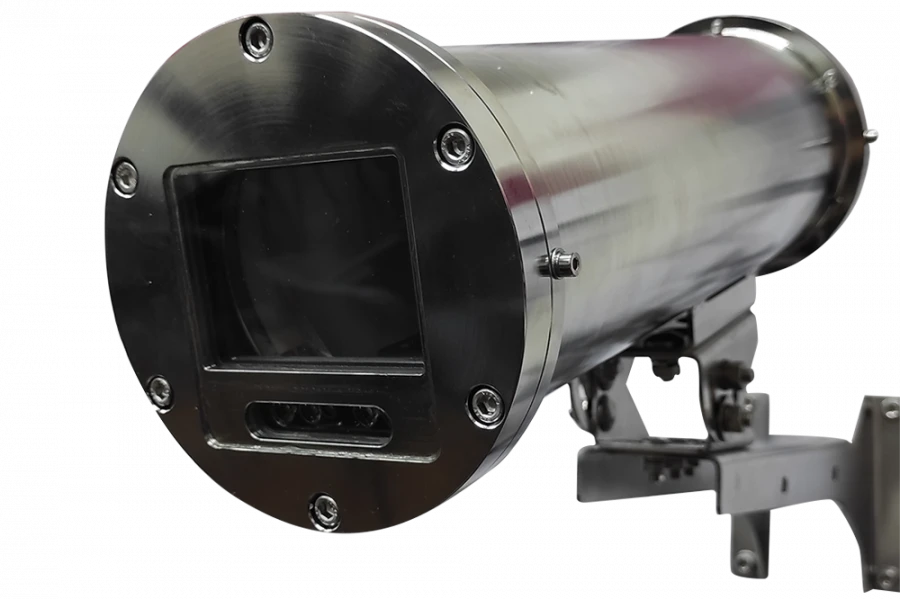

Explosion-Proof Thermal Enclosure with IR Projector Relyon-TKV-400-N-IK for Enhanced Safety

Explosion-proof thermal housings with built-in IR illuminator. Useful internal volume 85x80x245 mm. Range of IR illumination (m)/angle of illumination (deg): basic - 60m/60°; optional - 15m/90° or 100m/10°.

Explosion-proof thermal housing is designed to protect video equipment in security and technological video surveillance systems in hazardous areas, as well as under the influence of corrosive environments. Explosion protection marking ?? Ex db I Mb/ 1Ex db IIC T6 Gb / Ex tb IIIC T85°C Db allows to use the thermo-shroud in conditions of aggressive environments - alkaline and acidic environment, sea water and salt fog.

Full dust and water resistance IP66/IP68 allows to use the thermo housing in rooms with humidity up to 100%, heavy dustiness, as well as in open areas in difficult weather conditions.
