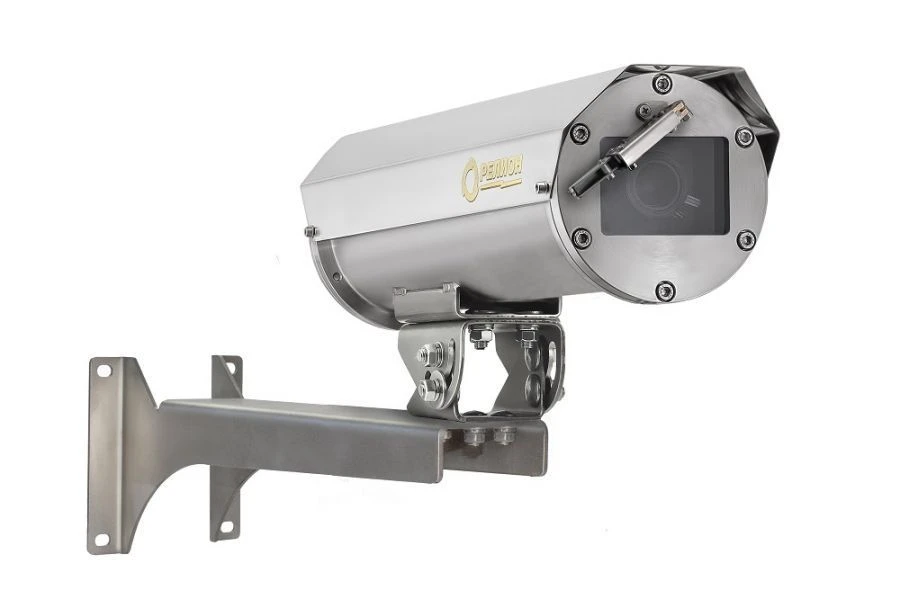

Explosion-Proof Thermal Enclosure Relion-TKV-300-N-CO for Extreme Conditions

Explosion-proof thermal housings with built-in wiper. Useful internal volume 70?62?170 mm. Temperature range: -65 ...

+55 ° C. Heating, cold start, protection against polarity reversal and short circuit. Explosion protection marking PB Ex db I Mb / 1Ex db IIC T6 Gb/ Ex tb IIIC T85°C Db allows to use the thermocover with the equipment installed inside in hazardous areas of classes "1" and "2", as well as in underground workings of mines, mines and their above-ground structures.

The material of the housing is stainless steel. Especially recommended for use in conditions of exposure to aggressive environments - alkaline and acidic environment, the impact of seawater and salt spray.
