Explosion-proof LIGHTS WITH LIGHTING SOURCES Series: "NOTE Ex" LE-SBP-72

LED Ceiling & Wall Lights

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

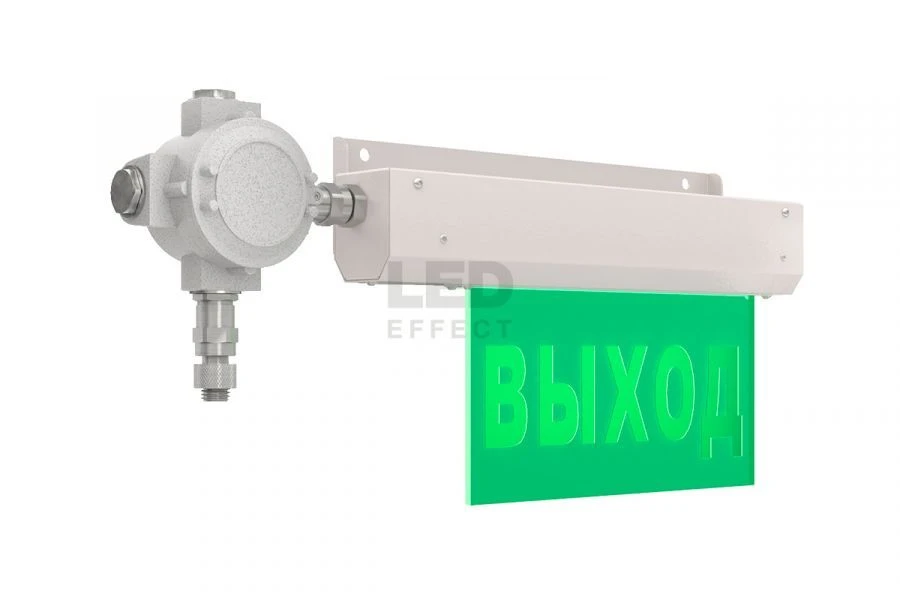

Explosion-proof emergency-evacuation safety signs of constant action NOTE Ex are used in hazardous areas as notifiers, or to indicate the exit and direction of evacuation movement in case of emergency. These luminaires are designed for wall or ceiling mounting.
Safety signs are produced in three versions: with green (512-527 nm), yellow (585-594 nm) and red (618-629 nm) LED light depending on the type of sign.
The sheet steel housing provides the mechanical strength required in production facilities.
Powder coating is possible in the colour according to the customer's specifications.
The emergency sign is made of polycarbonate with milling and antistatic coating.
Operating temperature range in basic modification: 0 ... +50.
Modification with BAP heating: -60 ... +50.
Degree of protection IP67 allows to mount the LED pointer in premises with high humidity on the street or near fire extinguishing systems.

Specifications

Color rendering index (CRI) 70...95

Mounting type Universal

Housing material Metal

Width 266...366 mm

Length 594...794 mm

Height 103 mm

Correlating color temperature (CCT) 2700...5700 K

Power consumption, W 5...10 W

PROTECTION CLASS AGAINST ELECTRIC CURRENT 1

Ripple factor, less than or equal to 1 %

Power factor, greater than or equal to 0.9

Color rendering index (Ra), greater than or equal to 70...95

Type of lamps (LED, incandescent, fluorescent) LED

Type of supply current AC

Degree of protection (IP) 65...67

Power factor 0.9

Upper operating temperature value SBVVBG °C

IK code 10

Type of explosion protection 1Ex db mb IIC T6 GbX / Ex tb IIIC T80°C DbX

Type of emergency luminaire Option

Net weight 4...5 kg

Degree of protection 65...67

Protection class against electric current 1

Light distribution class ?

Type of luminaire Wall-mounted

Brightness limitation category limited

Color temperature (K) 2700...5700 K

PROTECTION CLASS AGAINST ELECTRIC CURRENT NUMERICAL VALUE!!!!!!!!!!!!!!!!!!!!!! 1

Weight 4...5 kg

Optical element material optical PC

Climatic execution (according to GOST 15150-69) UHL1

Degree of protection against dust and moisture (according to GOST R IEC 60598-1-2011) 65...67

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
