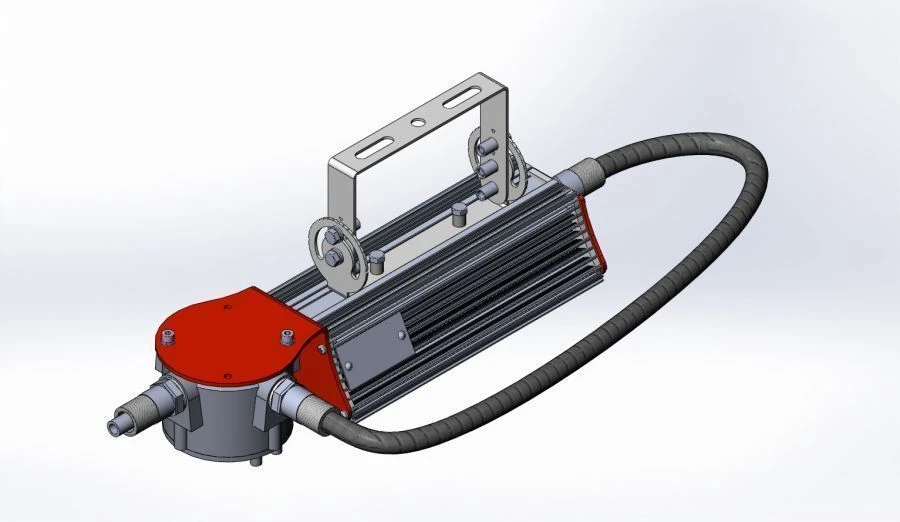

Explosion-proof LED luminaire with terminal box Sakhalin 40.13650.73 Ex T5, swivelling mount

LED Spotlights and Luminaires

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Designed for stationary installation for illumination of explosive industrial premises and outdoor installations.

Field of application:
- explosive areas of classes 1 or 2 when a gas mixture is likely to be present, categories IIA, IIB, IIC;
- hazardous areas of classes 21 and 22 with probable presence of combustible dust, category IIIC.

Group II electrical equipment is used for gas environments, Group III for dust environments (except mines).
Degree of protection IP67

Technical Specifications

Model	sakhalin t5 with terminal box (with kk)
Protection class against electric current	I
Power factor	0.97
Power consumption, W	73 W
Rated supply voltage	230 V
IK code	9
Type of supply current	Variable
Type of luminaire	Stationary
Pulsation factor	1 %
Luminous flux	13650 lm
Color rendering index (Ra)	70
Operating temperature range	40...45 °C
Light distribution class	n - direct light; BCC types : D, G, S, W, K, U
Height	65 mm
Width	118 mm
Length	634 mm
Diffuser material	transparent polycarbonate
Lower operating temperature value	45 °C
Upper operating temperature value	40 °C
Color temperature	5000 K
Overall brightness, cd/m2 not more than	109189
Diameter of the light spot in the plane of objects	10380 mm
Housing material	anodized aluminum profile
Climatic version	?2

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
