Explosion-Proof LED Luminaire ExL200 for Safe Industrial Applications

LED Ceiling & Wall Lights

Manufacturer: SIDECO LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

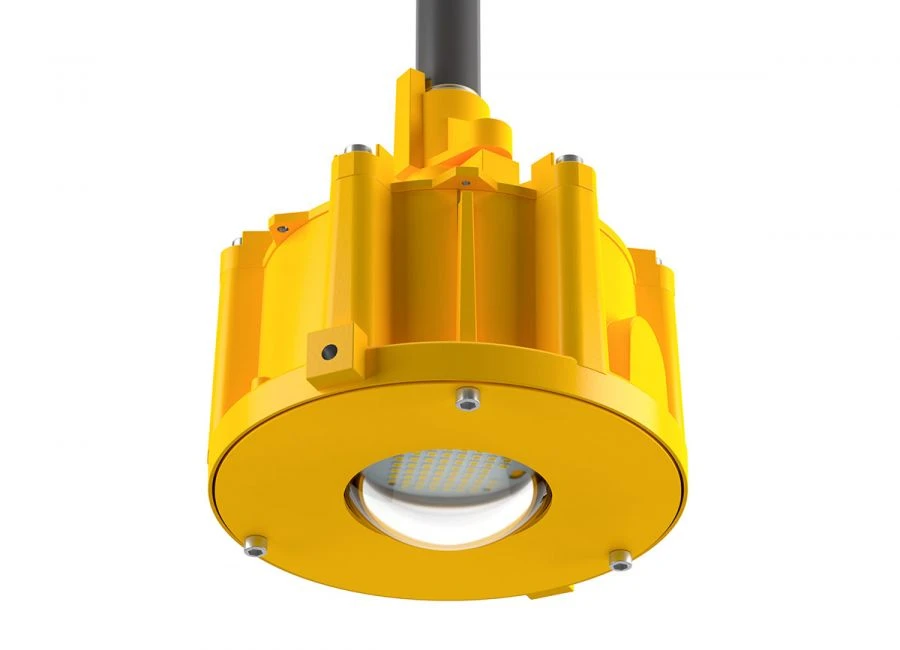

Explosion-proof LED luminaire Lumistec ExL200 - developed by engineers of the company "Sideco" as a full-fledged and more effective analogue of outdated luminaires type VZG-200, which allows you to avoid serious costs for design work when replacing lighting.Warranty service life - up to 5 years. ExL200 luminaires are designed for illumination of objects: oil production and transport;nuclear power plants, enrichment plants, etc.; gas production and transportation; defence industry; oil refineries; power engineering (CHPP, HPP, GRES, boiler houses); chemical plants; water supply; ferrous (FM) and non-ferrous metallurgy (FM); sewerage; pulp and paper industry;waste utilisation;food industry;mining industry.

Specifications

Type of lamps (LED, incandescent, fluorescent)

LED

Type of supply current

Degree of protection (IP)

66,67

Power factor

0.98

Upper operating temperature value

60 °C

IK code

Type of explosion protection

1Ex db IIC T6 Gb/ Ex tb IIIC T 80°C IP67, 1Ex db IIC T5 Gb Ex tb IIIC T 95°C IP67

Type of emergency luminaire

Net weight

2.2...3 kg

Degree of protection

66,67

Light distribution class

Type of luminaire

explosion-proof universal (3/4 pipe connection, T-tube, U-pass)

Brightness limitation category

limited

Color temperature (K)

2700...5700 K

Weight

2.2...3 kg

Optical element material

tempered silicate glass

Protection class against electric current

Climatic execution (according to GOST 15150-69)

UHL1

Degree of protection against dust and moisture (according to GOST R IEC 60598-1-2011)

66,67

Color rendering index (CRI)

70...90

Mounting type

On 3/4 pipe, swivelling clamp

Housing material

Cast aluminum

Width

170 mm

Length

170 mm

Luminous flux, lm

1200...5000 lm

Height

220 mm

Correlating color temperature (CCT)

2700...5700 K

Power consumption, W

10...40 W

PROTECTION CLASS AGAINST ELECTRIC CURRENT

Luminaire height

220 mm

Ripple factor, less than or equal to

1 %

Double angle half brightness

120

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
