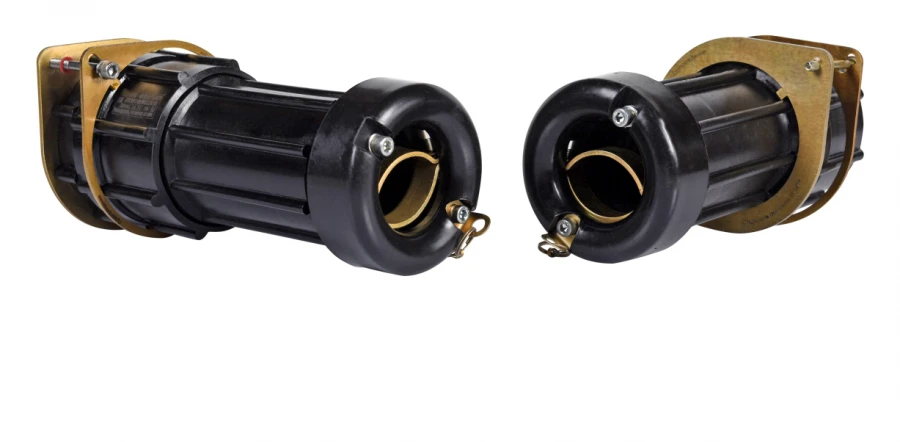

Explosion-proof cable socket VRK63-5V1M

Electrical Connectors & Clamps

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Explosion-proof panel plug ???63-4?1 Explosion-proof cable plug VVK400-1V1 Explosion-proof cable socket VRK25-4V1 Explosion-proof panel socket VRP25-4V1

Description

Couplers and connectors are designed for connection and disconnection of cable network sections, various electrical units, installations and machines between themselves and with sources of electrical energy in ground stationary and mobile installations operated indoors and outdoors. Explosion-proof connectors VVP, VRP, VVK, VRK are designed for use in hazardous areas in accordance with regulatory documents.

Specifications

Nominal voltage 440 V

Weight 1.95 kg

Overall dimensions (DxWxH) 248x160 mm

Explosion protection marking Ex tb IIIC T95°C Db;Ex tb IIIC T80°C Db;1Ex e IIC T5 Gb;1Ex e IIC T6 Gb

Degree of protection against external influences IP67;IP66;IP65

Climatic version ?1

Operating temperature -60...50 °C

Rated current 63 A

number of contacts 5 (3P + N + PE)
