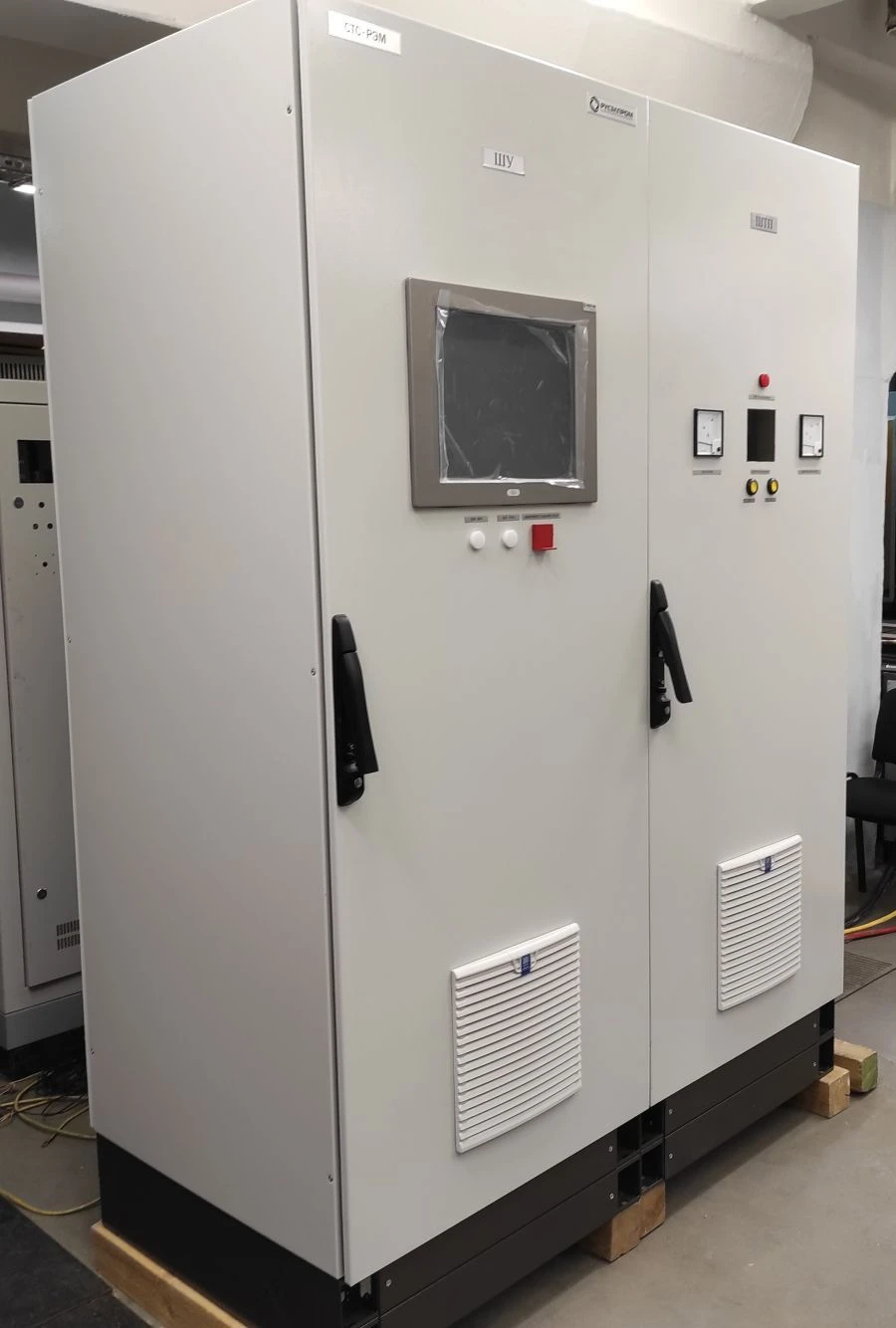

Excitation system STS-REM-330-130-2,5

Electrical Gear Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The STS-REM excitation system is designed to supply automatically regulated direct current to the excitation winding of a synchronous generator

Specifications

Excitation circuit Single-group thyristor, self-excitation

Completeness 1. Excitation system shield (control cabinet, thyristor converter cabinet) - 1 piece; 2. Protective resistance - 1 piece; 3. Rectifying transformer TSZP-160/10 10,5/0,245 kV U3 U/D-11 IP21

Group of operating conditions according to GOST 30631-99 ?6

Degree of protection according to GOST 14254-2015, IEC 60529:20132 Thyristor converter cabinet - IP21, control cabinet - IP54

Rated voltage of the excitation system 130 V

Rated current of the excitation system 330 A

Multiplicity of excitation forcing by voltage, not less 2.5 o.u.

Excitation current boost multiplicity, not less 2,0 o. e.

Duration of current flow of forcing, not more SBVVBG

Time of change of excitation voltage from nominal to ceiling voltage when stator voltage is set by 5 per cent at rated power and 0.03

Time of change of excitation voltage from nominal voltage to negative voltage equal to 0.75 ceiling voltage at rated power and n 0.06

Frequency of mains supply voltage SBVVBG

DC circuit supply voltage 220 V

AC supply voltage 380 V

Rated voltage of stator voltage measuring circuits 100 V

Rated current of stator and rotor current measuring circuits 5 A

Average sound level at a distance of 1 m from the equipment contour, not more than 85

Cooling of thyristor converter natural air

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
