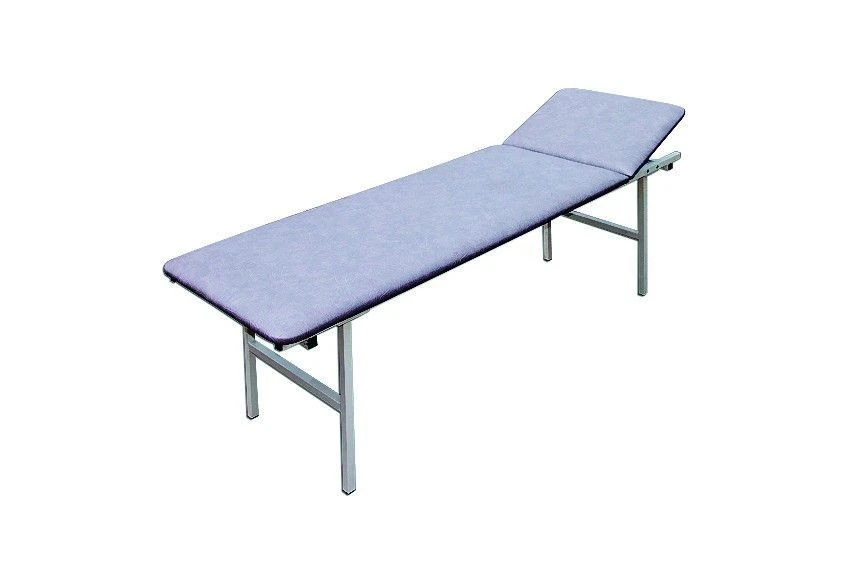

Examining couch M 2047

Couch M 2047 is designed to accommodate patients in examination rooms, treatment rooms and other medical offices.
-The product is a prefabricated and collapsible construction. The main parts of the construction are: square section frame, couch bed.
-The couch bed consists of two sections - headrest and bed. The angle of elevation of the headrest relative to the horizontal plane varies from 0 to 43°. The headrest of the couch is infinitely adjustable - there is no adjustment step.
-Raising and lowering of the headrest is done by lever method with the help of a rod connected to the bracket and threaded through the clamp.
-The bed and the headrest are connected into one piece by two joints using self-tapping screws. The frame and legs are fixed and fastened by means of a screw joint. The clamp is fixed to the frame with a screw joint.
The bracket is fixed to the headrest by means of self-tapping screws and to which the bar is fixed by means of a screw joint. The bed is fastened to the frame with self-tapping screws.
