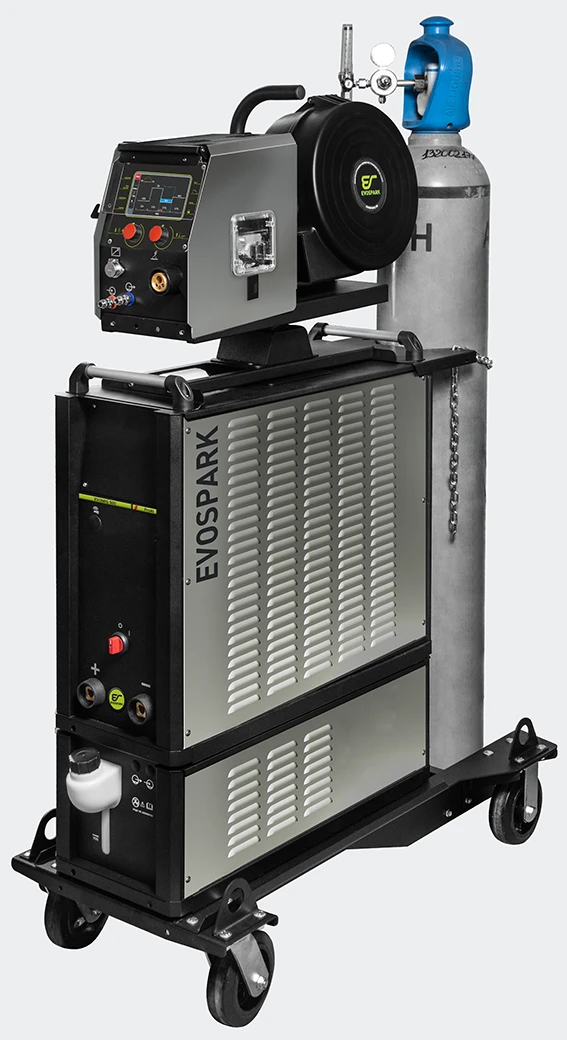

EVOMIG 450. Manual and semi-automatic welding machine

Electric Welding Machines

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

EVOMIG 550 AES-2. Apparatus for manual and semi-automatic welding EVOMIG 500 TP. Manual and semi-automatic welding machine EVOMIG 550. Machine for manual and semi-automatic welding EVOMIG 400. Manual and semi-automatic welding machine

Description

Industrial inverter welding machine with welding parameters software for semi-automatic welding with solid electrode of carbon and high-alloy steels, aluminium alloys at currents up to 450A. Supports modes with controlled current form, pulse modes, combined welding modes. It has the function of manual arc welding with piece electrode (MMA), argon-arc welding on direct current (TIG DC).
It has a modular design of the power part and provides: IP 34, PV 100% at maximum current in the temperature range -40 ... +40 ° C, efficiency 96%. The control cycle of welding arc parameters is 6.6 µs.
Complete with a system of remote control and documentation of parameters PAK WeldWeb..

Specifications

Type of product according to PP RF 616 Arc welding equipment;

Minimum welding current 25 A

Rated welding current 450 A

Operating voltage 380 V

Mark evospark

Weight 55.8 kg

Mains frequency 50...60

Manual arc welding 20-450 ?

argon-arc welding 3-450 ?

Semi-automatic welding 25-450 ?

No-load voltage 93 V

Maximum power consumption, kW 18.2

Length 740 mm

Width 300 mm

Dimensions 740x300x660 mm

Equipment power source, remote wire feeder upp, liquid cooling unit bjo mig, cylinder cart, welding torch, grounding cable, cable package, remote parameter control system pak weld web.

Load Duration (LL) 100 %

Type of welding voltage regulation smooth

AC mains supply voltage 300...500 V

Type of welding current permanent

Maximum welding current 450 A

Height 660 mm

Operating modes (continuous/pulse) pulsed and short-pulsed

Current intensity at 100% SP 450 A

EFFICIENCY 96 %

Cos f 0,99

Degree of protection ip 34

Insulation class ?

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
