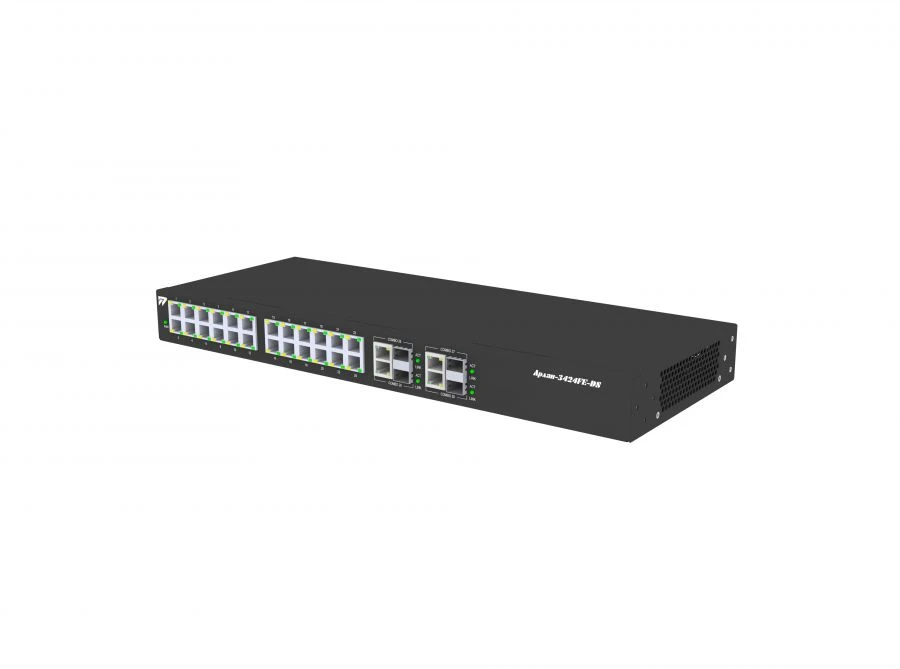

Ethernet Switching and Routing Equipment Arlan-3424FE-DS for Data Networks

Digital Transport Systems

Manufacturer: POLYGON OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Data network packet switching and routing equipment (Ethernet L2/L3 Switch). Supports 24 ports 10/100 Base-T and 4 Combo-ports 10/100/1000Base-T, 100/1000 Base-X. Allows you to build networks with physical topologies such as "line" and "ring". Multiple switches are combined into a ring or line topology using Ethernet ports (10/100BASE-T, 10/100/1000BASE-T/1000BASE-X). Power supply voltage: 48V.

Specifications

Connector type

RJ45, SFP

Form factor

Data transfer rate

12.8

Maximum signal transmission distance

200

Maximum data transfer rate

1000000

User interfaces

RJ45, SFP

Support for quality of service mechanisms

Armoured glass

Management and control of work

CLI, WEB, SNMP

Power supply voltage

48 V

Placement

19" telecommunication rack

Number of Ethernet ports

28 pcs

Number of RS-422/232 interfaces

1 pcs

Number of RS-485 interfaces

1 pcs

RS-485 baud rate

115.2

Supported protocols

BPDU Filtering, STP BPDU Guard, Loopback Detection, Voice VLAN, Guest VLAN, Private VLAN, GVRP, SPAN, RSPAN, sFlow, IGMP Snooping v1,2,3, IGMP Snooping Fast Leave, RIPv1,v2, OSPFv2,v3, BGP, VRRP, BFD, SNMPv2c,v3, ACL, ERPSv2, QoS, QinQ

Possibility to modify VPO according to customer's requirements

Armoured glass

Availability of optical control channel

Redundancy of the control unit

Availability of power supply redundancy

Client interfaces

RJ45, SFP, RS232/485

Configuration with separate control processor

Supported single optical wavelength data rates (list)

LAN port speed, Mbps

10, 100, 1000

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
