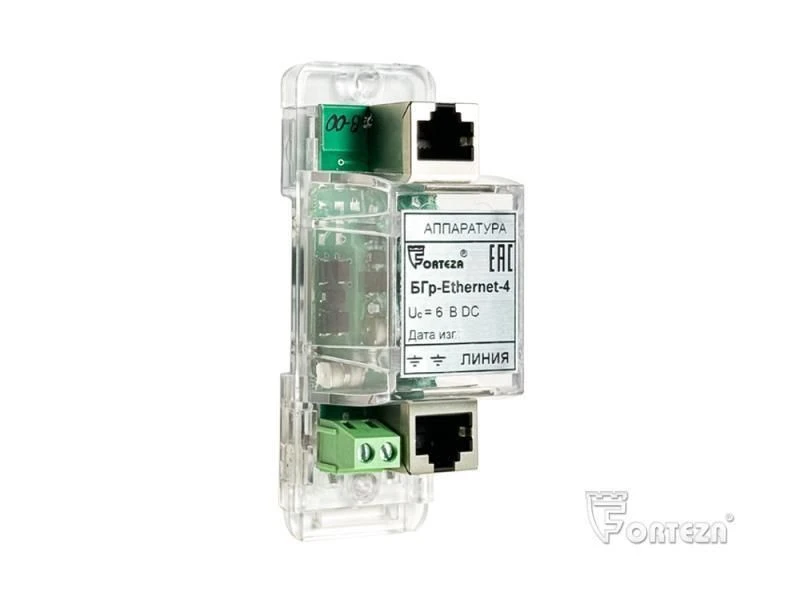

Ethernet Surge Protection Unit "Block BGr-Ethernet-4" for Network Safety

Surge Protection Devices

Manufacturer: OKHRANNAIA TEKHNIKA LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

They are used for protection of ports of local Ethernet network from impulse overvoltages caused by inductions at lightning discharge.BGr-Ethernet-4 provides protection of 4-wire Ethernet network, (data transmission speed 10 - 100 Mbit/s), made in a plastic case for mounting on a DIN-rail or flat surface.

Specifications

Bandwidth at -2 dB level, not less than

250

Maximum continuous operating voltage for DC data lines

6 V

Test pulse for data lines, relative to ground, DC:

4 kV

Protection voltage for the data line: 15 V, relative to ground

600 V

Number of circuits

4 pcs

Operating current, max.

0.6 A

Degree of enclosure protection

IP-20

Weight

0.1 kg

Dimensions

96x33x41 mm

Operating temperature range

-55...65 °C
