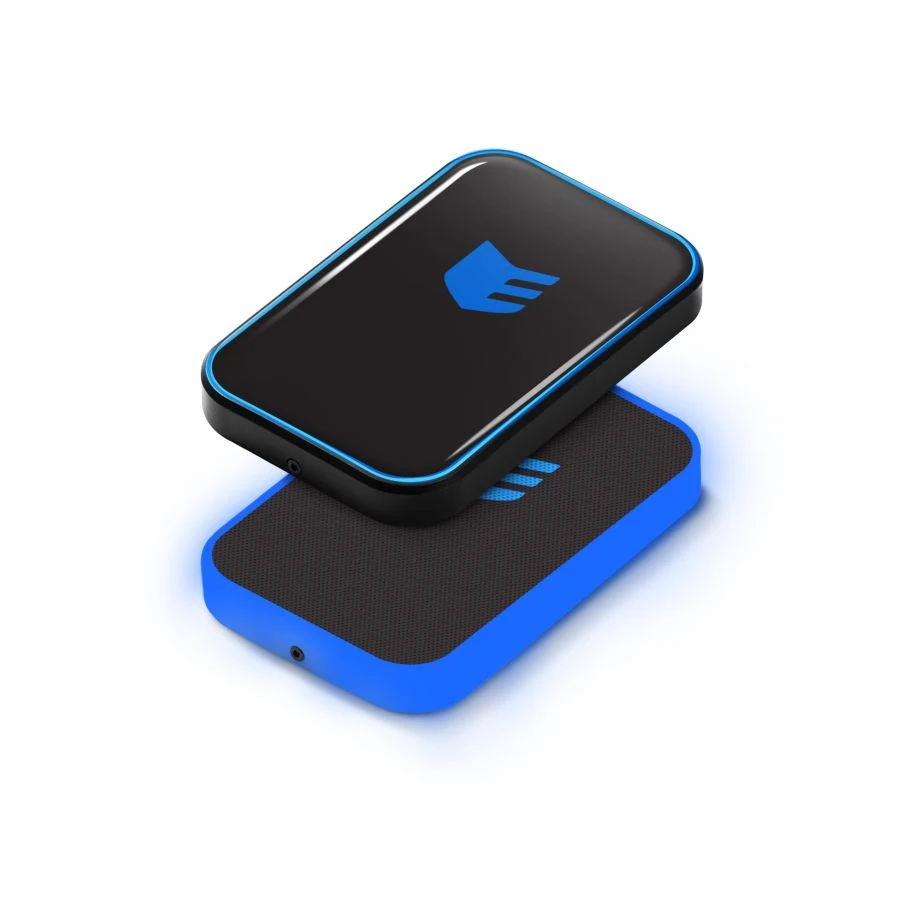

[ER1602] ESMART® Reader BLE BLE NEO series reader

Wired Information Systems

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Multiformat reader for ACS. The size of the case gangbox. In ABS-case with RGB backlighting with the possibility of execution of front panel design on an individual layout from 1 piece. Compatible with 2.4 GHz (BLE) identifiers: ESMART® Access mobile identifiers. Compatible with 13.56 MHz (NFC) identifiers: ESMART® Access, MIFARE® (ID, Classic, Plus SL1\SL3), ISO14443 (UID reading), ISO15693 (UID reading), ESMART® Access mobile IDs, Bank Cards (UID reading, CPLC reading, MIFARE® Emulation mode operation). Self-configuration with the ESMART® Configurator application. Wiegand 26, 34, 58, other.

Technical Specifications

Model	ER1602
Housing material	Polycarbonate + ABS
Case color	Black / White (Transparent for backlight)
Compatible with 13.56 MHz IDs (NFC)	ESMART® Access; MIFARE® ID; MIFARE® Classic; MIFARE® Plus (SL1 / SL3); ISO14443A; ISO15693; ESMART® Mobile ID Access (HCE); Bank Cards (UID / CPLC / MIFARE®)
Compatible with 2.4 GHz IDs (BLE)	ESMART® Mobile IDs Access
Reading distance 13.56 MHz (NFC)	ISO15693 up to 15 cm, others up to 10 cm
Reading distance 2.4 GHz (BLE)	up to 10 m
Connection interface	Wiegand
Data transmission format	Wiegand 26, 34, 58, own format
Device inputs	Four-mode backlight (GLED, RLED), buzzer (BUZZ), controlled by lower level
Connection type	Cable 0.5 m
Nutrition	5-12 V, DC
Consumption	150 mA (max.), at 12 V
Configuring the device	By NFC / BLE via ESMART® Configurator App
Dimensions	111 x 69 x 11,2 mm
Weight	126 g
Dustproof	According to IP68
Operating temperature	– 40 ... +85°C
Storage temperature and humidity	- 40 ... +85°C, 0% to 95% non-condensing
Equipment	Reader, Mounting kit, Instruction manual
Production	Russia, Zelenograd
Warranty	3 a

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
