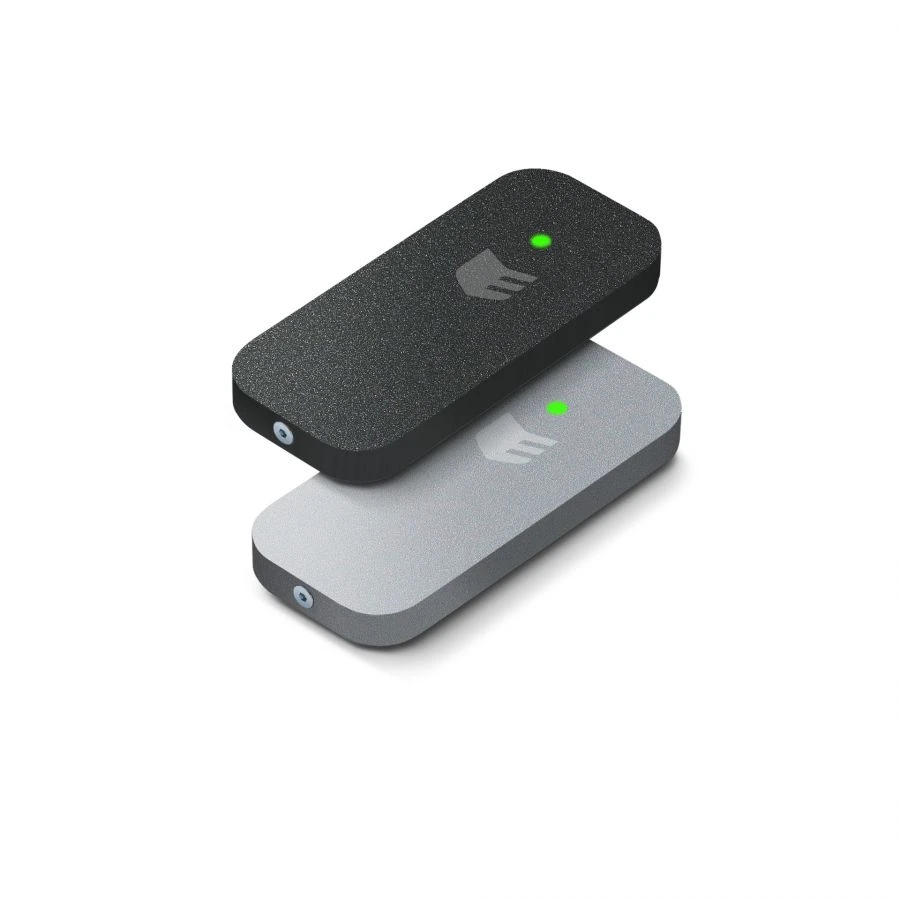

[ER1501][Mullion] ESMART® Reader BLE reader STONE series

Wired Information Systems

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Multiformat reader for ACS. The size of the case mullion. For installation on the door trim. In the case of artificial stone Dupont Corian ® with the possibility of engraving on an individual layout from 1 piece. Compatible with 2.4 GHz (BLE) identifiers: ESMART® Access mobile identifiers. Compatible with 13.56 MHz (NFC) identifiers: ESMART® Access, MIFARE® (ID, Classic, Plus SL1\SL3), ISO14443 (UID reading), ISO15693 (UID reading), ESMART® Access mobile IDs, Bank Cards (UID reading, CPLC reading, MIFARE® Emulation mode operation). Self-configuration with the ESMART® Configurator application. Wiegand 26, 34, 58, other.

Technical Specifications

Model	ER1501
Series	STONE
Size	Mullion
Case	DuPont Corian®
Case color	Anthracite / Silverite / Personalised
Compatible with 13.56 MHz IDs (NFC)	ESMART® Access; MIFARE® ID; MIFARE® Classic; MIFARE® Plus (SL1 / SL3); ISO14443A; ISO15693; ESMART® Mobile ID Access (HCE); Bank Cards (UID / CPLC / MIFARE®)
Reading distance 13.56 MHz (NFC)	ISO15693 up to 15 cm, others up to 10 cm
Compatible with 2.4 GHz IDs (BLE)	up to 10 m
Connection interface	Wiegand
Data transmission format	Wiegand 26, 34, 58, own format
Device inputs	Four-mode backlighting (GLED, RLED), buzzer (BUZZ) controlled by the lower level
Connection type	Cable 0.5 m
Nutrition	5-12 V, DC
Consumption	150 mA (max.), at 12 V
Configuring the device	By NFC / BLE via ESMART® Configurator App
Configuration options with the ESMART® Configurator application	Identification technology management; Flexible setting of card operation modes; Encryption keys for MIFARE® Classic and MIFARE® Plus (SL1 / SL3); Universal setting of Wiegand operation parameters; Setting of Bluetooth parameters; Setting of audio and
Recommended mounting location	Flat surface, door trim
Dimensions	113 x 45 x 10 mm
Weight	103 g
Dustproof	According to IP68
Operating temperature	– 40 ... +85°C
Storage temperature and humidity	- 40 ... +85°C, 0% to 95% non-condensing
Equipment	Reader, Mounting kit, Instruction manual
Production	Russia, Zelenograd
Warranty	3 a

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
