Energy Comfort Floor Collector Unit, Type UPK Available for Import

Energy Comfort Floor Collector Unit UPK for Efficient Heating Systems

Industrial Valve Systems
Manufacturer: ENERGOKOMFORT LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

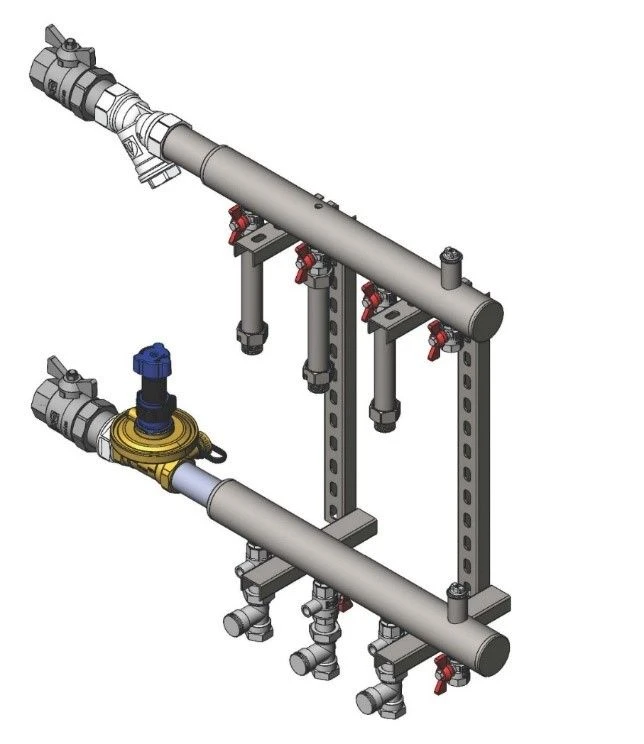

The floor collector node "Energokomfort" type UPK is designed for connection to horizontal heating system. UPC fulfils connection, measuring, regulating and distributing function.

Specifications

Nominal diameter of the connection to the apartment system
Dn 15-20 (special version can be produced)
Nominal diameter of riser connection
Dn 20-32 (special version can be produced)
Nominal pressure
1,0 MPa/1,6 MPa
Operating medium and temperature
Water with temperature from 2 to 105 degrees centigrade
Collector material
stainless steel/black steel
Material of accessories
Brass; Bronze; Stainless steel; Black steel; PTFE; EPDM
Type of connection of components to pipelines
Threaded connection
Climatic execution according to GOST 15150
UHL 4
Service life
8 year
Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
