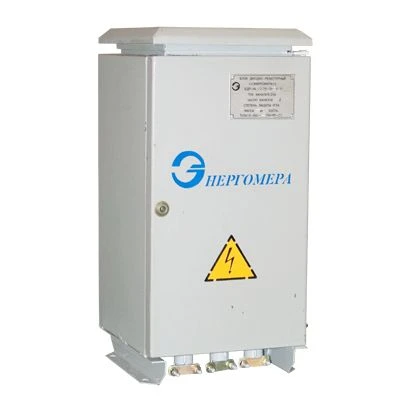

Energomera type diode-resistor blocks BDR-M2
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Diode-resistor blocks are designed for use in systems of cathodic protection of underground metal structures from electrochemical (ground) corrosion to provide joint protection of several underground metal structures from one cathodic protection station. They can also be used as polarised drains to eliminate harmful mutual influence of adjacent structures in schemes with separate protection.
Diode-resistor blocks with channels of direct conductivity can be used for connection of multilink anode earthing and equalisation of currents of dissipation from separate links.
They are manufactured for types of climatic version U1 with the possibility of placement in the open air.
Diode-resistor blocks with channels of direct conductivity can be used for connection of multilink anode earthing and equalisation of currents of dissipation from separate links.
They are manufactured for types of climatic version U1 with the possibility of placement in the open air.
Specifications
Technical specification
25 A
Technical specification
15 A
Technical specification
0.04 ohm
Technical specification
-45 – +45 °C
Technical specification
1000 V
Climatic version
Manufactured for climatic version U1
Temperature class
-45_+45
Degree of protection
IP34
Housing material
quality polymer powder coating
Material of manufacture
Polymer powder coating
Height
500 mm
Width
400 mm
Current capacity
25?
Frequency
50Hz
Color
RAL 7035
Assignment
to provide joint protection of several underground metal structures from one cathodic protection station
Length
250 mm
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
