Endodontic system for preparation and cleaning of root canals "Estus Drive" (Set codes GE29-DRAS-R, GE29-DRAS)
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided

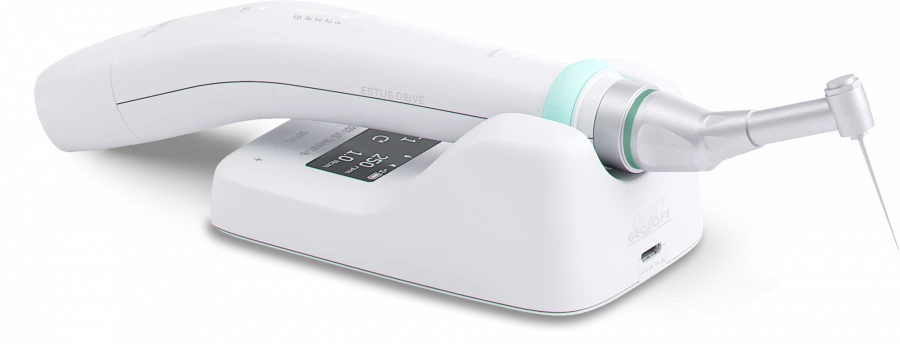

The Estus Drive endodontic system with RT head and Estus Smart-B apex-locator stand is designed for root canal preparation using all types of NiTi files of continuous and reciprocal rotation at speeds from 200 to 1200 rpm. Features and advantages: -Automatic recognition of the type of head connected; -Magnetic locking of the head; -Integrated apex-locator in DRAS-P, DRAS-4 sets; external apex-locator integrated in the Estus Smart-B stand; -Wireless communication between the motor and the stand via radio channel; -Single control unit - ring-type button; -Removable battery pack (8V or 4V/ Type-C); -Possible reprogramming of motor parameters with the help of Estus Smart-B stand; -Working both independently and as a part of the complex; -Possibility to purchase additional heads: 1. SAF heads for working with SAF files or 2. GF heads for working with endodontic drills and brushes such as GentleBrush File.
Technical Specifications
| Automatic calibration of the micromotor system | Got it |
|---|---|
| Apical Reverse function | apical reversal when apex point is reached |
| Apical Slow Down function | automatic motor slowdown when approaching apex |
| Weight of the Estus Smart-B smart apex locator stand | 80 g |
| Overall dimensions of Estus Smart-B smart stand-apexlocker | (100*60*40) ±3 mm |
| Estus Smart-B battery full charge time | 270 |
| Estus Smart-B continuous operation time with a new fully charged battery without recharging it | 65 |
| Measuring range of external apex-locator in Estus Smart-B smart cradle | 3...0 mm |
| Display parameters of Estus Smart-B smart stand-apex locator | OLED type (1.3") |
| Power supply source for Estus Smart-B smart stand-apex locator | Li-Ro battery (3.7V; 2000mAh) |
| Weight of the Estus One-B stand | 132 g |
| Overall dimensions of the "Estus One-B" stand | (100*60*40) ±3 mm |
| Power supply parameters for Estus Energy-S and Estus Smart-B | Input voltage (100-240) V, ~50/60Hz, Output voltage 5V; max. 2,4? |
| Weight of the Estus Energy-S charging station | 130 g |
| Overall dimensions of the charging station "Estus Energy-S" | (87*56*49) ±3 mm |
| Integrated radio module NF-03 (in Estus Drive and Estus Smart-B) | 2.4-2.525 GHz, max. output power - +7 dBm, range - up to 3 m in line of sight |
| Protection against electric shock for Estus Drive and Estus Smart-B | Product with internal power supply. Working part type BF |
| Weight of the Estus Drive handpiece | 140 g |
| Dimensions of the Estus Drive handpiece | (210*33*51) ±3 mm |
| Max. time to fully charge the 4V battery pack from mains supply | 1.5 |
| Max. time to fully charge the 8V battery pack from the charging station | 3 |
| Operating time of Estus Drive and Estus Smart-B in standby mode until automatic power off | 10 |
| Average continuous operating time of the Estus Drive with a new fully charged battery pack without recharging it | 135 |
| Apical stop position adjustment range (when Estus Drive is used in conjunction with Estus Multi, Estus Smart-B or Estus USB) | 0.1...1 mm |
| Measuring range of the integrated apex locator (when Estus Drive is combined with Estus Multi, Estus Smart-B) | 3...0 mm |
| Measuring range of the integrated apex locator (in Estus Drive standalone mode) | 2...0 mm |
| Clockwise/counterclockwise rotation angle in file reciprocal rotation mode (when Estus Drive is working together with Estus Mult | 10...360 |
| Counterclockwise rotation angle in file reciprocal rotation mode (in Estus Drive standalone operation mode) | 150 |
| Clockwise rotation angle in file reciprocal rotation mode (in Estus Drive standalone operation mode) | 30 |
| Limit torque in continuous file rotation mode (when Estus Drive is combined with Estus Multi, Estus Smart-B or Estus | 0.2 - 5.1 Ncm |
| Torque limit in continuous file rotation mode (in Estus Drive stand-alone operation mode) | 3.0, 2.0, 1.2, 1.0 Ncm |
| Accuracy of file rotation speed stabilization | 10 % |
| Speed in continuous file rotation mode (when Estus Drive works together with Estus Multi, Estus Smart-B or Estus USB) | 200...1200 |
| Speed in continuous file rotation mode (in Estus Drive standalone operation mode) | 500 |
| Estus Drive handpiece power supply | 1. Li-Ro battery pack (2x3.7V; 800mAh) with charging station or 2. Li-Ro battery pack (3.7V; 800mAh) with mains charging via Type-C connector |
| Safety torque reversal (STR) function | STR when torque limit is reached in continuous rotation mode of Ni-Ti files |
| 5 work programs | P1-P4 - continuous rotation, P5 - reciprocal rotation |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
