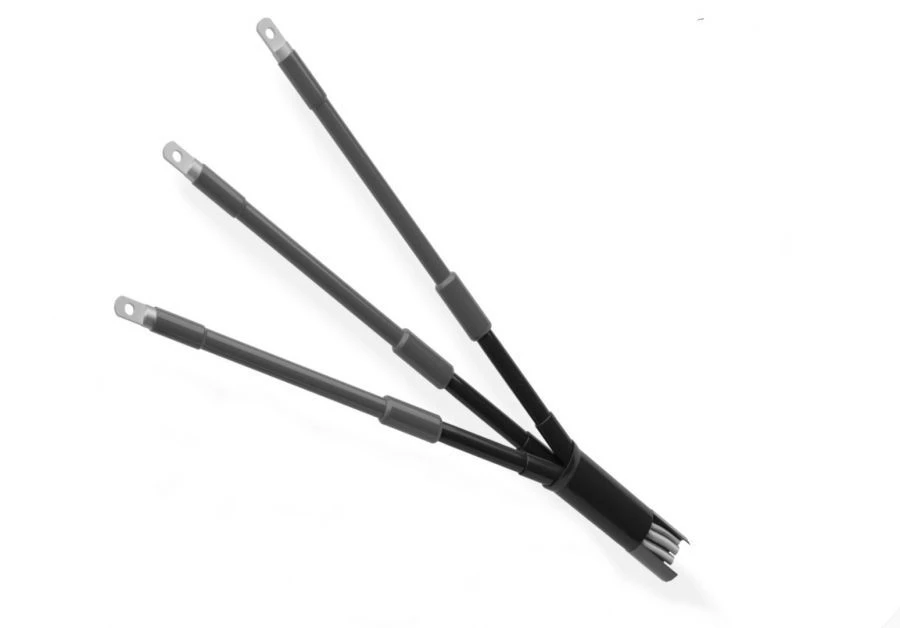

End Termination Kit KVNTPN-1 for 3x(70/120) Cable - Reliable Solution for Cable Termination

Purpose: Couplings are designed for termination of three-core power cable with paper insulation at a voltage of up to 1 kV with a frequency of 50 Hz. Field of application: KV(H)tn type couplings are used for indoor and outdoor installation. Completion: standard equipment includes heat shrinkable oil-resistant and insulating tubes, insulating glove, sealants, unsoldered grounding system, grounding wire with lug, bolt lugs, marking tubes, installation instruction.

K - type of coupling - end coupling; B - type of installation - internal; H - type of installation - external; t - heat shrinkable products are used in the design; n - glove is used in the design; H - the set includes a lug with contact screws with tear-off bolts; 1 - voltage kV; 3 - number of conductive cores in the cable; 70/120 - range of cross-sections of conductive cores of the cable, sq. mm.
