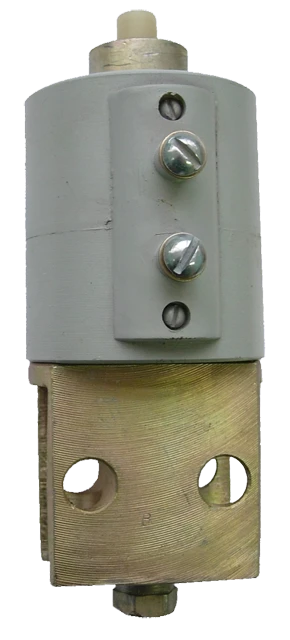

Electropneumatic valve BB-2G-13
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Electropneumatic valve BB-2G-13 U3 is designed for remote control of pneumatic actuators
Basic technical data:
Rated DC voltage, V110
Nominal pressure of compressed air, MPa0,5
Air passage cross-sectional area of the inlet valve, sq.mm0,675
Air passage cross-sectional area of exhaust valve, sq.mm0,35
Power consumption, not more than, W25
Stroke of valve system, mm2±0,1
Weight, kg ±5%1,16
Basic technical data:
Rated DC voltage, V110
Nominal pressure of compressed air, MPa0,5
Air passage cross-sectional area of the inlet valve, sq.mm0,675
Air passage cross-sectional area of exhaust valve, sq.mm0,35
Power consumption, not more than, W25
Stroke of valve system, mm2±0,1
Weight, kg ±5%1,16
Specifications
Type of product according to PP RF 616
Component spare parts) of railway locomotives, not having independent groupings
Weight
1.16 kg
Type
Electropneumatic valve
Assignment
designed for remote control of pneumatic actuators
Share your requirements for a quick response!
Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Payment Methods
