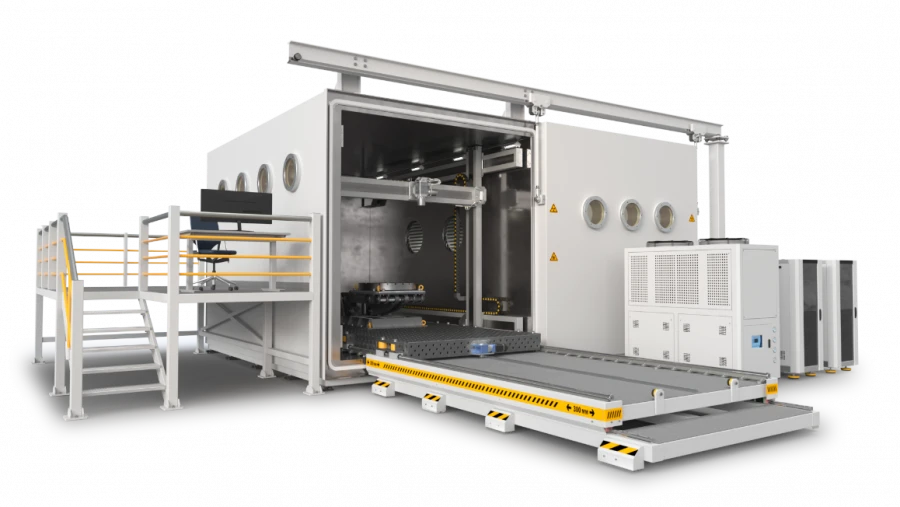

Electron beam welding machine TETA 30E3000

Electric Welding Machines

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

EQUIPMENT 30E3000
- General view video surveillance system
- Camera dust protection
- Vacuum chamber LED lighting with dust protection
- Welding area lighting
- Laser aiming
- Cooling shields
- Cooled manipulator
- Pyrometric monitoring of the temperature in the weld pool
- Thermal imaging camera
- Feeding of filler powder or wire
- Cryogenic pump for water vapour extraction
- Window protection against dust
- Rear clamping with force stabilisation
- Melting sensor
- Automatic pointing
- Automatic focusing
- Freely programmable beam deflection path
- Documentation of welding parameters, printing of reports
- Remote maintenance via Internet

Technical Specifications

Type of product according to PP RF 616	High-vacuum electron-beam installations
Type of product according to PP RF 616	High-vacuum electron-beam installations
Power	30 kW
Internal dimensions of the vacuum chamber	4000×3000×3000 mm
Accelerating voltage	60 kV
Maximum beam current	500 mA
Beam current stability	0.1 mA
Beam deflection angle	±7°
Cathode type	Indirect heating
Pumping time to operating vacuum	30
Manipulator, number of axles	5 pc
Movement in X, Y, Z axes	3000, 2000, 2000 mm
Travel speed in X, Y, Z axes	0.1 - 50 mm/sec
Gun tilt angle	±90°
Faceplate diameter	900 mm
Rotation speed	0,1 - 5 rpm
Power supply voltage	3 phases, 380 V, 50(60) Hz
Dimensions	10000x10000 mm
Mark	THETA 30E3000
Type	Electron beam welding unit
Equipment	Options available

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
