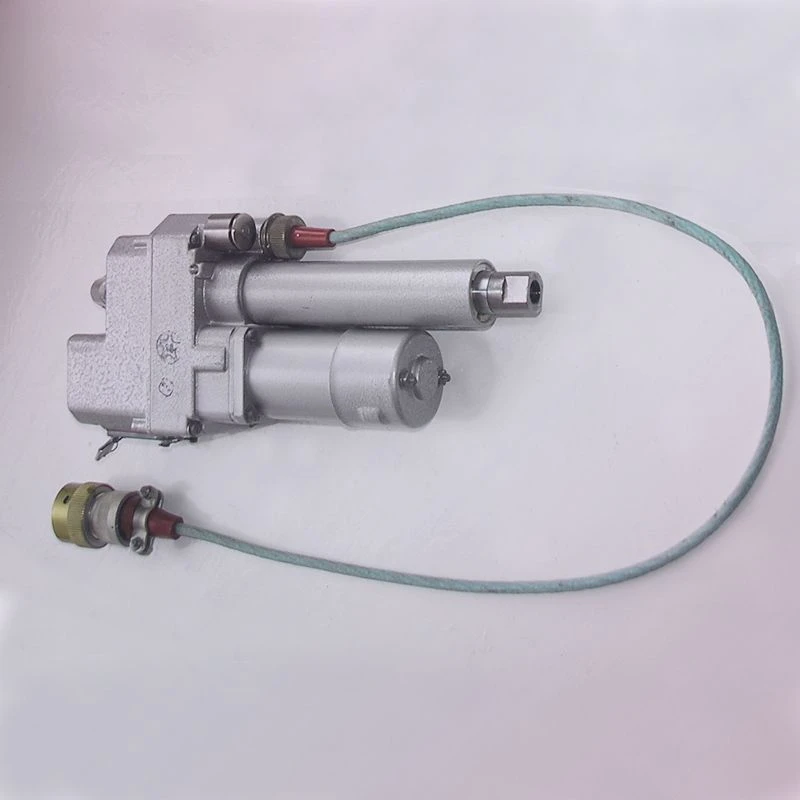

Electromechanical Actuator for Linear Motion MP10C2.5A01 - Ideal for Aviation and Ground Equipment

Manufacturer: ELECTRODRIVE OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Electromechanism of progressive motion is designed for linear movement of actuators on objects of aviation and ground equipment.

Weight

0.9 kg

Overall dimensions

41x87.5x182 mm

Operating temperature

-60...+85 °C

Stroke speed at rated voltage and counter load under normal operating conditions

2.5 mm/s

Working stroke of the stem

10...80 mm

Operating static load along the stem axis

1960

Nominal counter load along the stem axis

980

Rated DC supply voltage

27 V
