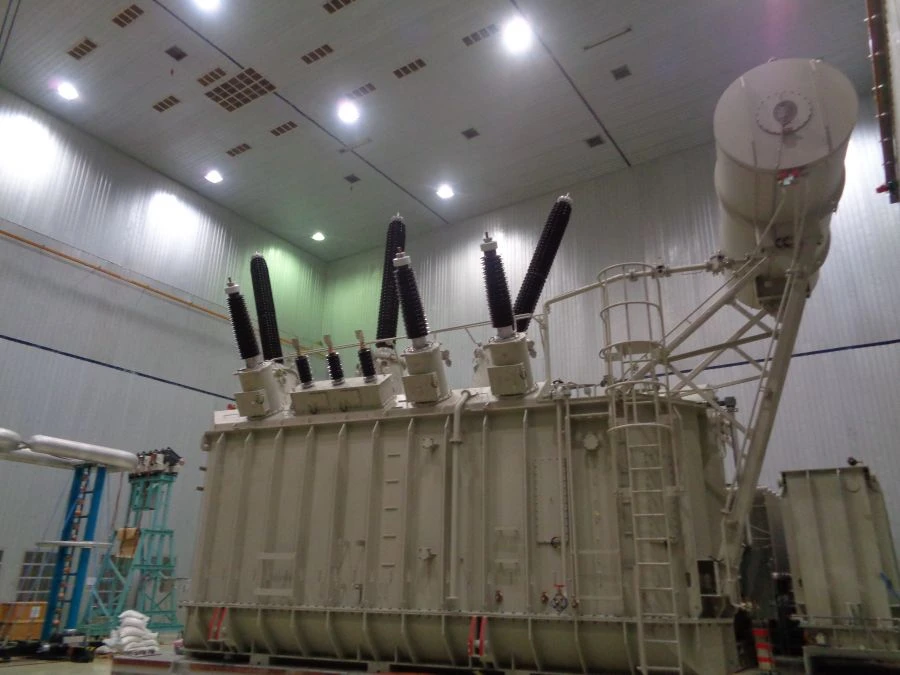

Electromagnetic Induction Autotransformer ATDTN-200000/330/110-U1 for Voltage Conversion

Functional purpose: conversion by electromagnetic induction of one or more AC systems into one or more other AC systems. Main consumer qualities and parameters: transformers are manufactured in accordance with GOST 11677-85, GOST 17544-85. Rated power: 200000 kVA; Rated current of HV winding: 350 A, rated current of SN winding: 1004 A, rated current of LV winding: 1200 A; Rated voltage of HV winding: 330 kV, rated voltage of SN winding: 115 kV, LV winding rated current: 38.5 kV; Number of phases: 3; Number of windings: high voltage windings, medium voltage windings, low voltage windings; Dielectric type: transformer oil.
