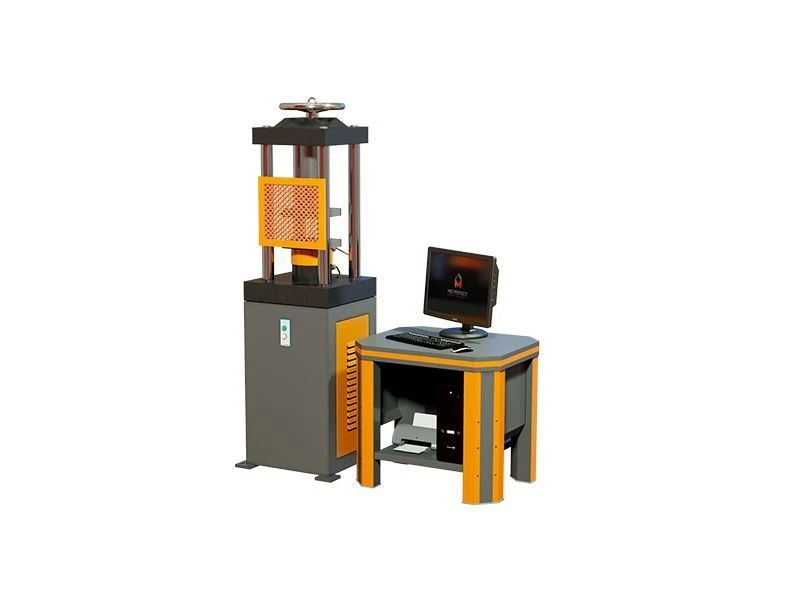

Electrohydraulic testing press PI-50-I-A

Electrohydraulic testing press PI-I is designed for mechanical testing in compression and bending mode of samples and products from various materials: metals, concrete, wood, rubber, plastics and so on.
Maximum load, kN50
Hydraulic tank volume, litres, not more than33
Power supply, V/Hz380/ 50
Power, kW2,5
Body dimensions* (L×W×H), mm535×365×1920
Weight, kg, not more than 380
Structurally, the PI press consists of: loading module with electrohydraulic cabinet, hydraulic drive, measuring and control system with PC.
To regulate the height of the working area, the press is equipped with a screw for moving the upper plate.
A displacement sensor measures the movement of the hydraulic cylinder piston.
A limit switch limits the movement of the hydraulic cylinder within the travel range.
The electro-hydraulic cabinet is designed to control the hydraulic cylinder
