Electrohydraulic steering machine model CM.2B-101/4H-B/2-U/2-441-441/74P

Special Purpose Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

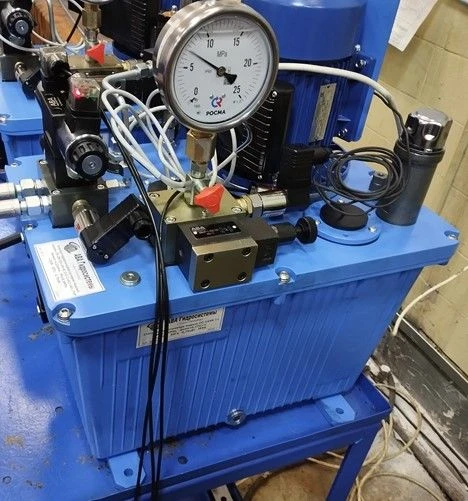

Electrohydraulic steering machine CM.2B-101/4N-B/2-U/2-441-441/74R is designed for vessels of project 04710 Somers - catamarans with two independent rudders and includes sub-systems of starboard and port side. Torque developed by one side subsystem is 441 kgf*m.

Specifications

Rated pressure of hydraulic drive station

11.5 MPa

Adjustment pressure of anti-shock (safety) valves of valve hydraulic block

12.5 MPa

Test pressure of hydraulic cylinders

15 MPa

Power of electric motor of hydraulic drive station

0.75 kW

Power supply of hydraulic drive station electromagnets, direct current

24 V

Nominal volume of hydraulic drive station hydraulic tank

30 l
