Available for Import

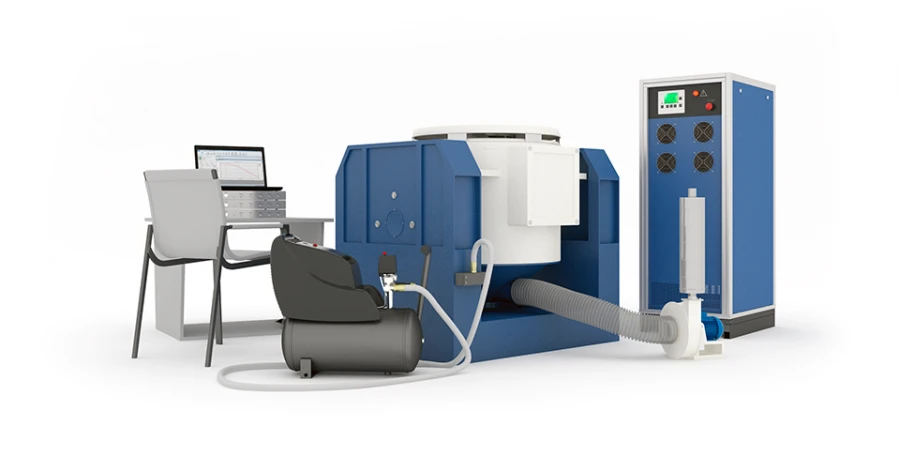

Electrodynamic Vibration Testing System VSV-250-550 for Precision Testing Applications

Vibration Testing Stands

Manufacturer: ROSTECH LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Vibration electrodynamic test rig VSV-250D(2)-445 Vibration electrodynamic test rig VSV-250-445 Vibration electrodynamic test rig VSV-260-550 Vibration electrodynamic test rig VSV-2160V-590 Vibration electrodynamic test rig VSV-270D-480

Description

Electrodynamic vibration test rig Designed to reproduce sinusoidal vibration, broadband random vibration, shock loads, and other types of vibration. Design features Table diameter 550 mm., frequency range 5-2000 Hz, displacement (amplitude) at zero load not less than 25 mm., acceleration (amplitude) at zero load not less than 595 m/s2, ejection force 50 kN., mass (maximum) load 800 kg. Advantages positioning system and super movement of the mobile system in the vertical position and in the horizontal position developed by Rostovskaya Technika LLC, power amplifier (modules, controller) developed and produced by Rostovskaya Technika LLC, amplifier control software developed by Rostovskaya Technika LLC.

Specifications

Type of product according to PP RF 616

8.6.2

Type of product according to PP RF 616

Other tools and instruments for measurement, inspection and testing

Frequency range

5...2000

Displacement (amplitude)

25 mm

Speed (amplitude)

1.8

Acceleration (amplitude)

595

Maximum load

800 kg

Forcing force (sinusoidal)

50000

Forcing force (random broadband)

35000

Compulsive force (percussive classical)

100000

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
