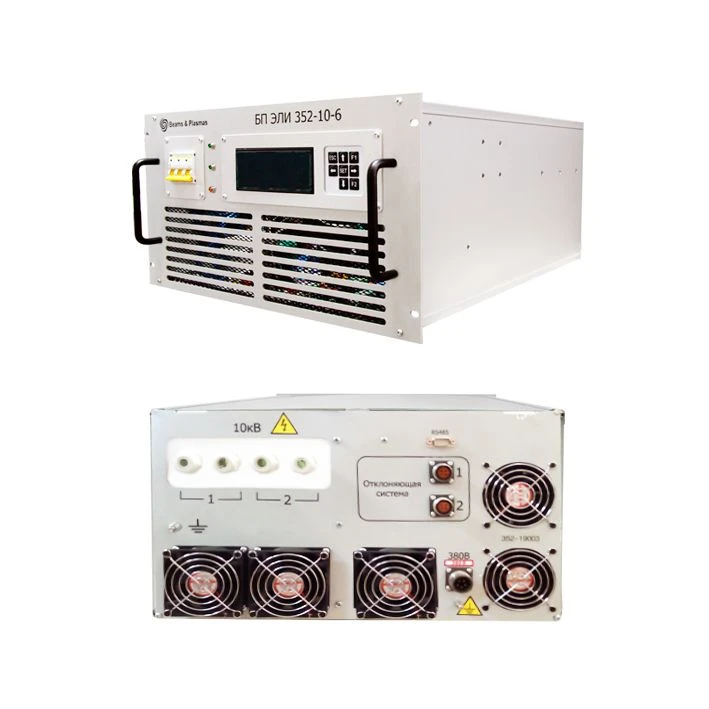

Electrode Power Supply for Electron Beam Evaporator BП ЭЛИ 352-10-6 6 kW

Available for Import

Electrode Power Supply for Electron Beam Evaporator BП ЭЛИ 352-10-6 - Efficient Power Management

Electrical Interface Devices

Manufacturer: LVT+ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Electron-beam evaporator power supply unit is designed for power supply of filament and anode voltage, control of two electron-beam evaporators (EBs) with individual settings of each of them. The unit is equipped with: <ul> <li>- front control panel</li> <li>integrated overcurrent protection system</li> <li>inbuilt breakdown protection system with automatic reclosing</li> <li>RS-485 interface for communication with a computer</li> <li>Modbus RTU protocol control</li> </ul> *Operational Manual is available on request: LCMK.352.00.00.00.00.000 RE POWER SUPPLY UNIT OF ELECTRONIC-RAY ISPARITEL BP ELI 352-10-6 It is allowed to deliver the device as a part of the installation without packing. On request, standard modernisation of the device by the manufacturer is possible.

Specifications

Assignment

Power supply and control of two electron beam evaporators (EBs) with individual settings for each of them

Dustproof

Yes - The unit housing is made of metal and has no exposed live parts

Cooling

Air

Type of construction

Built-in

Front control panel

Got it

Warranty period

1 year

Climatic designs

GOST 15150-69; GOST 15543-70 at normal values of climatic factors of the environment - UHL for product placement category 4.2

Power supply voltage

380 ±10% V

Voltage regulation range

4000-10000 V

Current control range

0,005-0,6 A

Power control range

20-6000 W

Maximum power

6 kW

Stabilization modes

Voltage, current

Output voltage polarity

Negative

Accelerating voltage channel: Accelerating voltage (negative polarity)

4-10 kV

Accelerating voltage channel: Accelerating voltage ripple, max.

5 %

Accelerating voltage channel: Voltage stability during one hour, not worse

2 %

Accelerating voltage channel: Voltage regulation discreteness

1 %

Booster voltage channel: Maximum output current mA

600

Accelerating voltage channel: Breakdown protection

switch off with automatic re-activation

Boost voltage channel: overload protection

current limitation

Filament channel: Output voltage frequency

Filament channel: Voltage control range

5-28 V

Filament channel: Current control range

6-40 A

Filament channel: Operating modes: current stabilization, not worse

2 %

Канал накала: Режимы работы: стабилизация мощности, не хуже %

2 %

Filament channel: Operating modes: emission current stabilisation, not worse %

2 (within 10 min.) %

Filament channel: Maximum power output

800 W

Power supply connection diagram

TN-S

Interface

RS-485

Data transfer protocol

ModBus RTU

Overall dimensions, (length x width x height)

485x615x266 mm

Weight, not more

30 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
