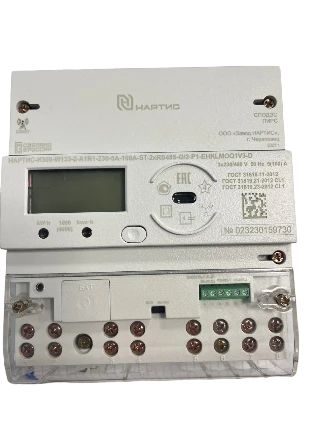

Electricity meter three-phase smart NARTIS-I300-W133-2
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Designed for measuring active and reactive energy of forward and reverse directions and four-quadrant reactive energy, keeping arrays of load power profile with programmable integration time, measuring parameters of three-phase network and quality parameters of electric energy in three-wire and four-wire AC networks. It allows to organise multi-tariff metering with transmission of accumulated information via wireless communication channels. The device is developed on the Russian component base and has a microprocessor K1986VU024 (NARTIS Ltd.). The W133 meter housing is compact, for installation in a panel. Communication interfaces: Opto-port, RS-485, RF, GSM, NBIoT. 4 tariff zones. Built-in load control relay, designed to switch the phase current circuit of the meter.
Specifications
Number of phases
3
Type
Multi-tariff
Nominal voltage
57 V
Rated current
5 A
Mounting method
for installation in the panel, on DIN-rail
Maximum current
10 A
Maximum operating temperature
70 °C
Minimum operating temperature
-40 °C
Type of metered energy
Active and reactive
Type of product according to PP RF 616
Instruments and other instruments for measurement, control and testing
Protection class
IP51
Communication interfaces
Opto-port, RS-485, RF, GSM, NBIoT
Electricity metering
Autonomous, as part of ASCUE, ADCS or by connection to the intellectual system of electric power (capacity) metering
Overall dimensions, mm
160´140´62
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
