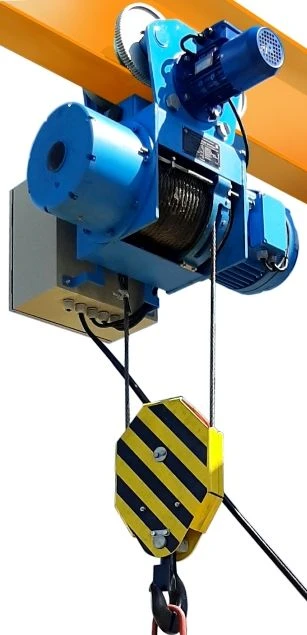

Electric wire rope hoists TE

Electric wire rope hoists of TE type with load capacity from 1 to 5 tonnes are designed for lifting (lowering) the load and its horizontal movement along the suspended monorail track in areas with temperate and cold climate. TE hoists can be used in industry, during construction and installation works, repair and handling operations in various industries. Electric wire rope hoist TE consists of the following main units and assemblies: gearbox, housing with switching system, electric hoist motor, clutch (transmission of rotation from the electric motor to the gearbox), rope stacker assembly, drum, hook suspension, control unit (electrical cabinet assembly), drive trolley with electric motor of hoist movement. The hoist gearbox is a planetary two-stage gearbox. To the hoist attached documentation (Passport, manual, spare parts catalogue, passports of electric motors), which is packed and placed in a box with the hoist.
