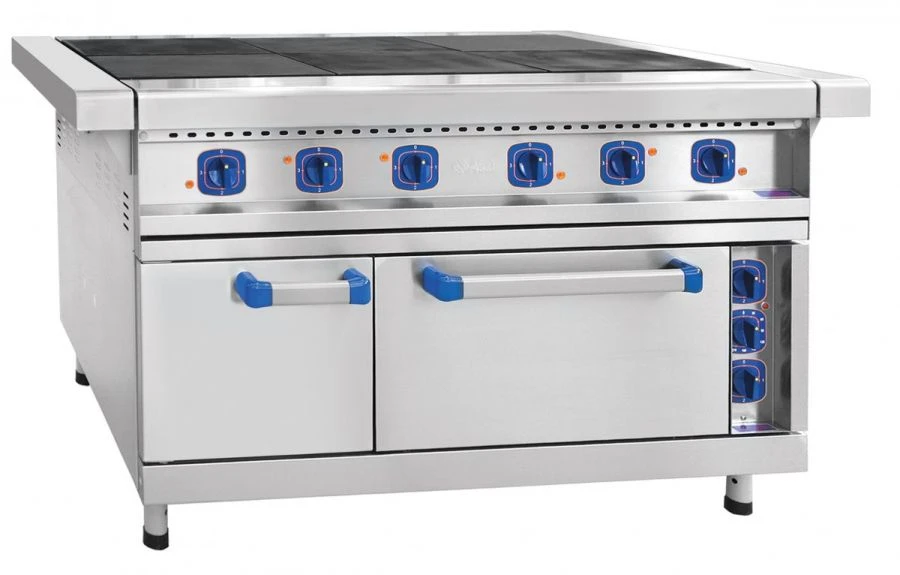

Electric six-burner cooker EP-6ZhShh-01 of ECO series

The cooker consists of a lower module with a roasting cabinet and a control panel, as well as a frame with fixed on it panelling, control panel with electric devices, burners and worktops. The hob panelling, oven and baking trays are made of stainless steel.
The burners are mounted on adjustable studs, by means of which they are set in the same plane with each other. The pull-out tray is used to collect any liquid spilt on the cooking surface of the burner. Stepwise regulation of the burner power is carried out by setting the switch knob in position "1", "2" or "3", which determines the degree of heating: weak, medium, strong. Signal lamps indicate the presence of voltage on the burners. In the lower part of the hob there is a roasting cabinet with a control panel. The roasting cabinet consists of a metal frame with a door, four heating elements located at the top and bottom inside the cabinet and removable rails. The bottom unit of the heating elements is covered with a metal sheet (floor). To reduce heat losses to the...
