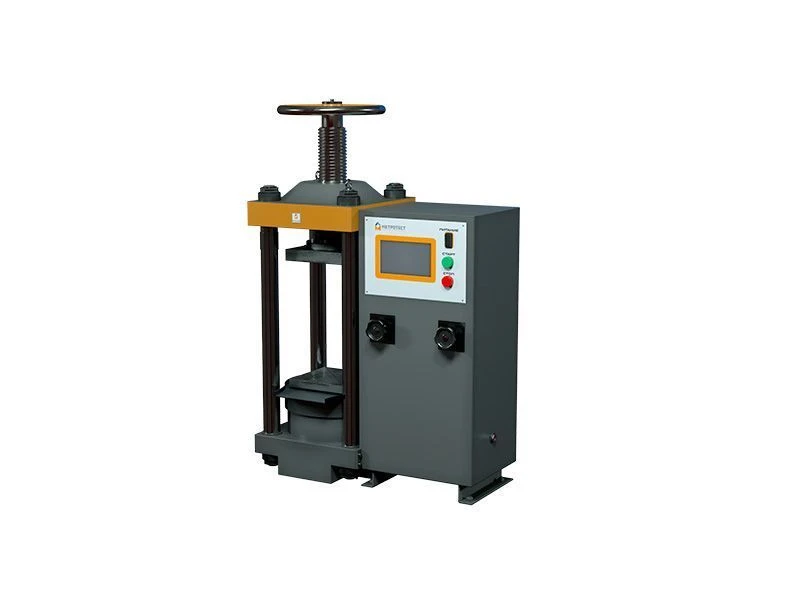

Electric Hydraulic Testing Press PI-600-II for Mechanical Testing Applications

Electrohydraulic testing press PI-II is designed for mechanical testing in compression and bending mode of samples and products from various materials: metals, concrete, wood, rubber, plastics and so on. Maximum load, kN600 Hydraulic tank volume, litres, not more than34 Power supply, V/Hz380/ 50 Power, kW1,5 Body dimensions* (L×W×H), mm950×510×1540 Weight, kg, not more than710 Structurally, the PI press consists of: loading module with electrohydraulic cabinet, hydraulic drive, measuring and control system with PC. To regulate the height of the working area, the press is equipped with a screw for moving the upper plate. A displacement sensor measures the movement of the hydraulic cylinder piston. A limit switch limits the movement of the hydraulic cylinder within the travel range. The electro-hydraulic cabinet is designed to control the hydraulic cylinder
