Electric energy converter H1t040

Static Power Converters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

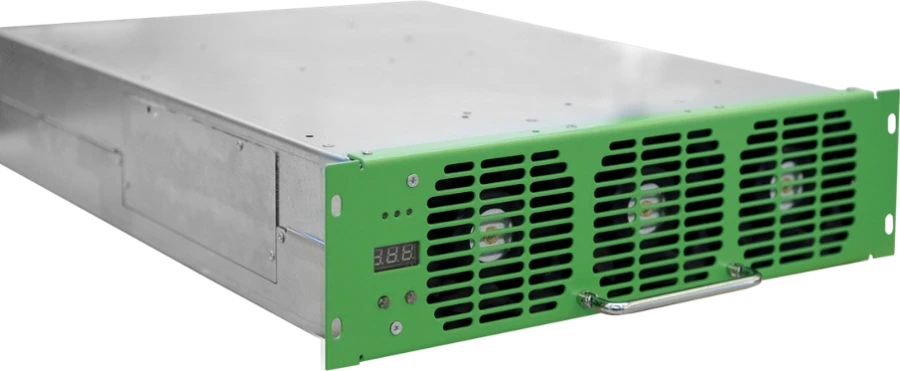

The electrical energy converter is designed to operate as part of electric charging stations. The product is an externally controlled power supply source, converting AC three-phase voltage 380V into DC voltage in the range from 200 to 1000V and has an output current in the range from 0 to 143A. The converter has an output power of up to 40kW and active air cooling.

Specifications

Control interface CAN

Maximum inverter efficiency 96 %

Output current range 0.5...143 A

Input voltage range 270...490 V

Output voltage range 200...1000 V

Module weight 20 kg

Output power, kW 40 kW
