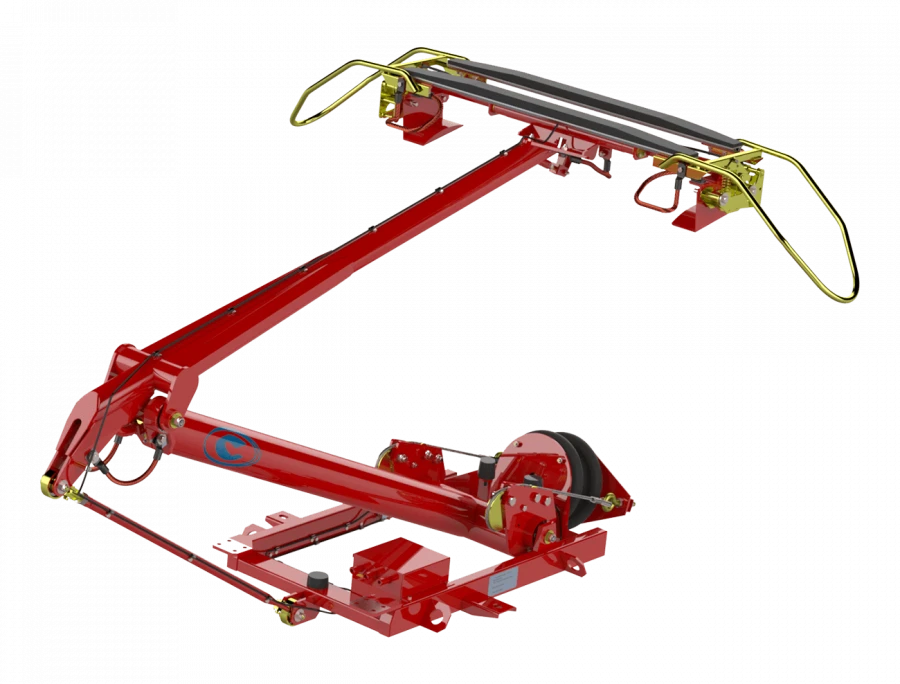

Electric Current Collector LA 19-SET 160 1200 for Reliable Electric Contact

High Voltage Switchgear

Manufacturer: S ELECTROTANSPORT LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

A traction electrical device designed to create electrical contact between the electrical equipment of the rolling stock with the contact network.It is equipped with automatic lowering system, which is triggered when the current collector is raised to a height of more than 7000 mm above the level of the rail head and the destruction of the slide inserts.Removable current up to 1200 A when travelling and up to 300 A at parking, from the contact network voltage of 3000 V DC and 27 kV AC and the speed of EPS up to 160 km / h.

Specifications

Speed of EPS movement

160

Current draw in parking lot

300 A

Current draw during driving

1200 A

Operating height of the automatic lowering system of the current collector, over

7000 mm

Type

Traction electrical apparatus designed to create electrical contact between the electrical equipment of rolling stock (EPS) and the contact network.
