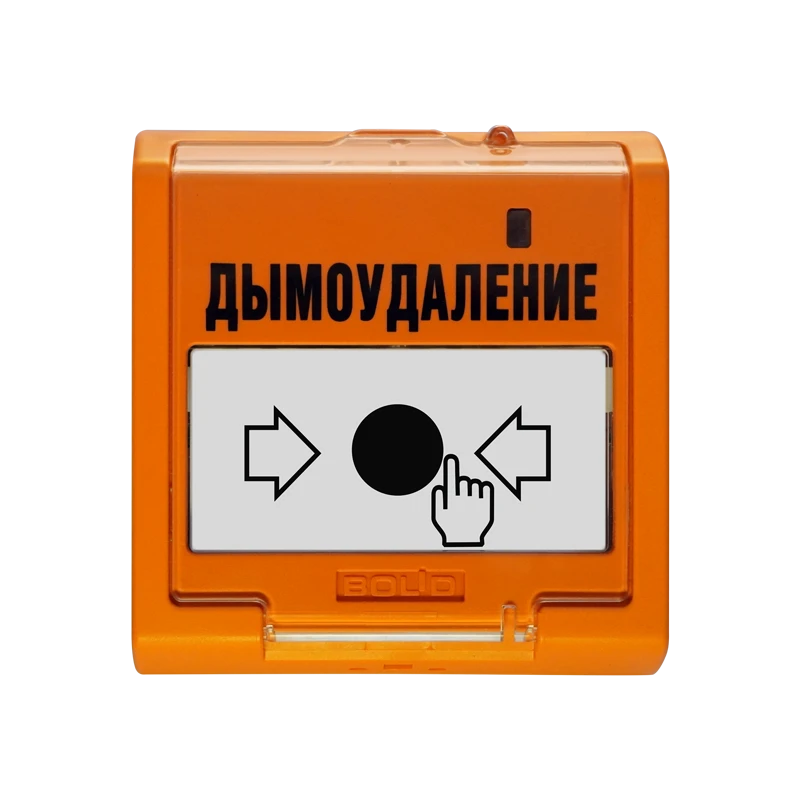

Electric contact remote starter "UDP 513-3M ????.02" ????.425211.014-02

Security and Fire Alarm Systems

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

It is used for manual start of smoke exhaust systems. It works in the alarm loop of the following control and monitoring units: S2000-4, Signal-20P, S2000-ASPT, Signal-10, Signal-20M or similar, providing the loop voltage up to 30 V and limiting the loop current at the level of no more than 25 mA. Functions: monitoring the state of the key; transmission of notices to the receiving and control unit (device); indication of operating modes (the state of the key) on the built-in light indicator.

Specifications

Maximum power supply voltage max. 30 V

Rated supply voltage 24 V

Consumption current in standby mode max. 50 µA

Switched current max. 25 mA

Maximum active resistance of alarm loop wires Not more than 100 ohms

Minimum insulation resistance between the wires of the alarm loop at least 50 kOhm

Protection degree of the shell according to GOST 14254-2015 IP40

Operating temperature range -30 to +55 °C

Overall dimensions of the device max. 95x91x34 mm

Instrument weight max. 0.2 kg

Average lifetime of the device 10 a

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
