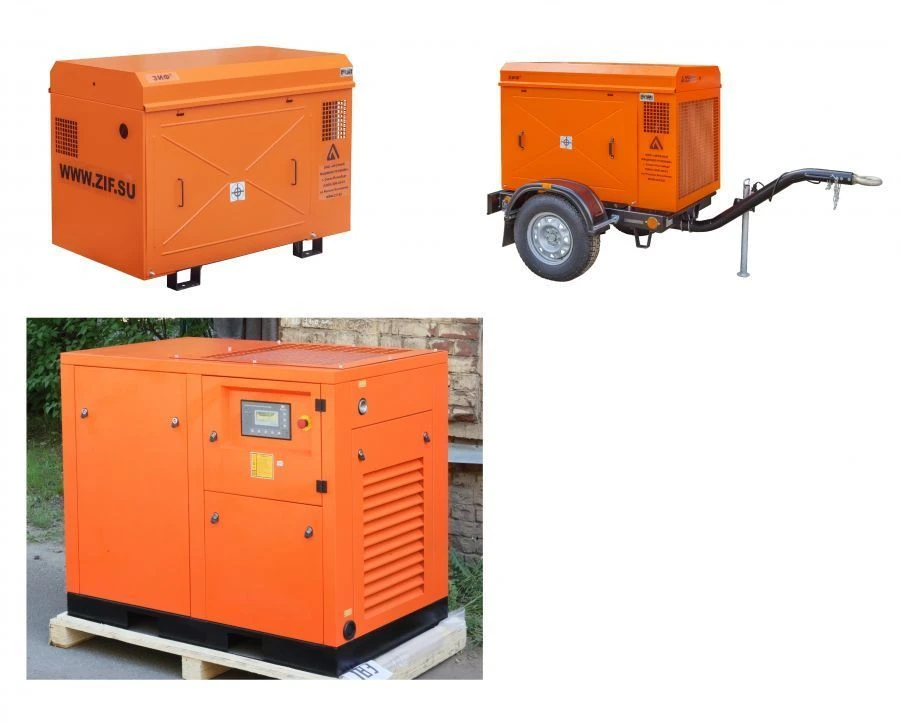

Electric air compressor station ZIF-SVE 6,3/0,7 (ARM19-12), (660/380 V, on a trailer) in a casing

Compressor type: screw.
Purpose: for generation of compressed air for supply of local pneumatic networks of industrial enterprises and various objects.
Drive type: electric motor.
Nominal volumetric capacity, nm3/min, not less: 6,3
Final working pressure (overpressure), MPa: 0,7
Compressible gas: atmospheric air
Operating temperature range, 0?:
- minus 20 to +40 (basic equipment)
- minus 40 to +40 (complete with "North" package)
- from minus 20 to +50 (with "Tropic" package)
Operating mode: automatic
Oil content in compressed air at rated mode, g/m3, not more: 0.0035
Rated motor power, kW: 37
Overall dimensions (DxWxH), mm: 1500*870*1140
Weight, kg, not more: 560

Within the framework of TU 3643-006-76260790-2020 "Air compressor electric stations ZIF-SVE types: MZA, ARM, ARM-MX, ARM-MKEK. Technical conditions." is produced a line of single-type air-compressor electric ZIF-SVE stations of types: MZA, ARM,....
