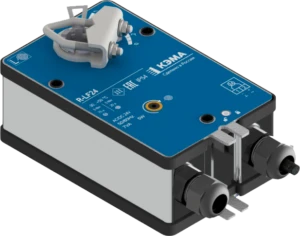

Electric actuator KEMA R-LF24 with return spring for 24V with torque 5Nm, for air dampers of ventilation systems.

Purpose: Electric actuator KEMA R-LF24 with torque on the shaft 5Nm, is designed to rotate dampers on air valves of ventilation systems, the control voltage of the electric actuator is AC or DC 24V, the return of the electric actuator to the initial state is carried out by means of the built-in return spring.Design features:1.The gearbox of the electric actuator is made with the use of only metal gears;2.The electronic control unit of the electric actuator works in the extended range of voltages.3.The electric actuator is equipped with a handwheel; 2.The electronic control unit of the electric actuator works in the extended range of voltages.3.The actuator is equipped with manual flap position locks when the actuator is de-energised.Advantages:1.KEMA actuators are adapted to Russian climatic conditions;2.KEMA actuators are fully adapted to safety signalling systems used in Russia;3.KEMA actuators operate in an extended range of voltage surges in electrical networks.
