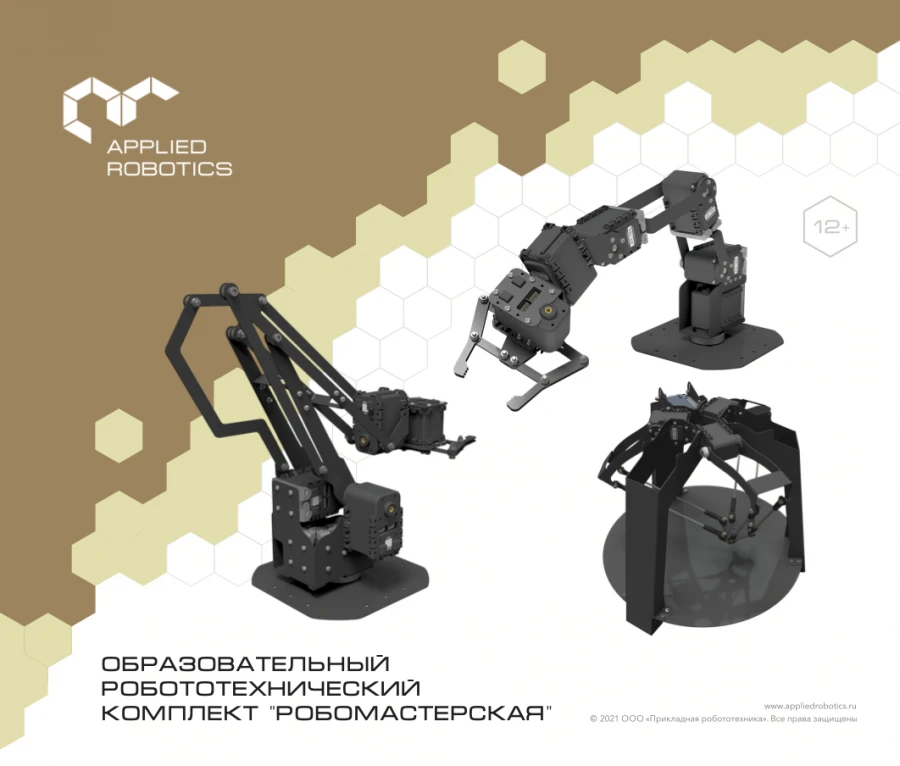

Educational Robotics Kit "RoboWorkshop" AR-RG-01

Available for Import

Educational Robotics Kit "RoboWorkshop" for Learning Robotics and Automation

Creative Building Kits

Manufacturer:APPLIED ROBOTICS LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Educational robotics kit "Robomastery" for learning the basics of development and construction of models of industrial manipulation robots of various types and autonomous mobile robots. The set includes servomodules, which are models of industrial automated drives with built-in control system. Application of this type of servomodules allows to develop models of manipulation robots with different types of kinematic scheme, having high accuracy and dynamics of movement.

Specifications

Structural elements made of metal for assembling a model of a manipulation robot with angular kinematics

23 pcs

Structural elements from metal for assembling a model of a manipulation robot with plane-parallel kinematics

30 pcs

Structural elements made of metal for assembling a model of a manipulation robot with DELTA kinematics

10 pcs

Fixing elements (screws of various ratings and lengths)

64 pcs

Fasteners (nuts of various ratings)

64 pcs

Elements for making hinge joints

7 pcs

Connection cables in various lengths

7 pcs

Intelligent servo module with integrated control system

7 pcs

Lower limit of acceptable supply voltage range(Servomodule)

9 V

Upper limit of allowable supply voltage range (Servomodule)

B1/B8 2100/900 MHz V

Gear ratio (Servomodule)

254

Maximum torque (Servomodule)

1.5

Upper limit of the range of rated rotation speed in constant rotation mode (Servomodule)

Maximum swing angle in position control mode (Servomodule)

300

Resolution (Servomodule)

0.29

Dimensions of servo module (WxHxH)

32x50x40 mm

Robotics controller

1 pcs

Number of ports for connection of optional built-in external microcomputer

48 pcs

External Battery Power Range (Robotics Controller)

6.8-12 V

Ports for connecting external digital devices (Robotics Controller)

16 pcs

Ports for connecting external analogue devices (Robotics Controller)

10 pcs

1-wire TTL interface for serial connection (Robotics Controller)

1 pcs

Number of conductors of 1-wire TTL interface (Robotics controller)

3 pcs

Number of devices to be connected simultaneously per bus, in series or in a chain via 1-wire TTL interface (Robotot)

200 pcs

Number of ports of 4pin type for connection of servo modules via serial interface (Robotics controller)

2 pcs

Programmable Buttons (Robotics Controller)

1 pcs

Interfaces (Robotics Controller)

PWM, UART, I2C, SPI, Ethernet, microphone, speaker connection pcs

Number of computing processor cores (Robotics Controller)

4 pcs

CPU core (Robotics controller) clock frequency

1.2

RAM (Robotics controller)RAM (Robotics controller)

512

Built-in memory device (Robotics controller)

Number of slots for microSD card connection (Robotics controller)

1 pcs

Built-in microphone (Robotics controller)

1 pcs

Pneumatic system kit

1 pcs

Universal computing module

1 pcs

Dimensions (LxW) (Universal Computing Module)

40?40 mm

Permissible supply voltage range (Universal Computing Module)

5-12 V

Flash memory capacity (Universal Computing Module)

Polyvinyl chloride plasticate, halogen-free composition

Number of Color Channels (RGB LED Module)

3 pcs

CPU (Universal Computing Unit) clock frequency

Number of USB type ports (Universal Computing Module)

2 pcs

Number of digital I/O ports (Universal Computing Module)

B1/B8 2100/900 MHz pcs

Number of analog ports (Universal Computing Module)

16 pcs

Interfaces (Universal Computing Module)

UART, I2C, SPI

Expansion board for the universal computing module

1 pcs

Dimensions (LxW) (Universal Computing Module Expansion Board)

40?40 mm

Power supply voltage (Universal Computing Module Expansion Board)

5 V

Number of I/O ports (Universal Computing Module Expansion Board)

40 pcs

Ethernet Interfaces (Universal Computing Module Expansion Board)

Ethernet, SPI , microSD pcs

AR-TCAM-01-BASE TrackingCam Vision Module

1 pcs

220V mains power adapter

1 pcs

Power Adapter Network Cable

1 pcs

USB interface cable for programming a programmable controller

1 pcs

Clock button module

3 pcs

Dimensions of clock button (DxW)

12x12 mm

Dimensions (LxW) (Clock Button Module)

40x26 mm

LED module

3 pcs

LED Dimensions (LxW) (LED Module)

3.5?2.8 mm

Dimensions (LxW) (LED module)

40x26 mm

Limit switch module

3 pcs

Dimensions (LxW) (Limit Switch Module)

40x26 mm

Color sensor module

1 pcs

Number of colour channels (Tset Sensor Module)

3 pcs

Dimensions (LxW) (Dimension (LxH) (Dimension of the colour sensor module)

40x26 mm

RGB LED module

1 pcs

Dimensions (LxW) (RGB LED Module)

40x26 mm

Training manual in Russian

6 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
