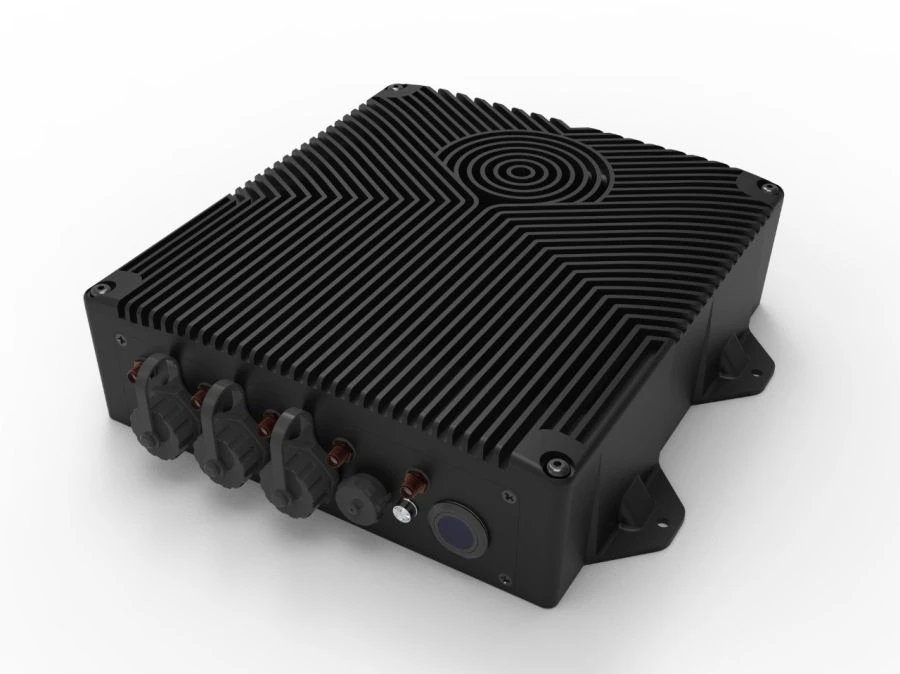

Edge AI Computing Module for Technical Vision Systems - 3DV-EdgeAI-32

All-in-One Computing Devices

Manufacturer: 3DiVi LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The computing unit is designed for building vision systems on vehicles and UAVs, as well as on any stationary territorially distributed objects. The block contains a neural processor with performance up to 32 TOPS, as well as a video processor with support for parallel processing of up to 32 channels of HD video. The unit is made in a compact aluminium housing with passive cooling and IP65 protection, and contains all the necessary interfaces for building embedded systems.

Specifications

Основной процессор

8 cores ARM Cortex-A53, frequency up to 2.3 GHz

Neuroprocessor

32TOPS (INT8), 16TFLOPS (FP16/BF16), 2TFLOPS (FP32)

Видеопроцессор

12 channels H.265/H.264 1080p@25fps video encoding 32 channels H.265/H.264 1080p@25fps video decoding

RAM

16GB LPDDR4x

Accumulators

64GB eMMC (operating system), up to 512GB SD (optional), M.2 NVMe 2280 (optional)

Basic interfaces

1GB Ethernet, USB 3.0, RS232, RS484, CAN

Wireless interfaces (optional)

Wi-Fi IEEE 802.11 ia/b/g/g/n/ac, Bluetooth 5.x module (M.2 key A+E), 3G/LTE/4G module (M.2 key B)

Navigation

GLONASS/GPS module

Power supply voltage

9...27 V

Dimensions

218×215×68 mm

Weight

2.3 kg

Temperature range

-20...+60 deg. C (possible version -40...+85 degrees C)

Protection class

IP65

Software

Операционная система Linux, инструменты разработчика 3DiVi, готовые детекторы (детекция лиц и объектов, верификация и идентификация лиц, трекинг лица, распознавание атрибутов лиц, алгоритм оценки качества изображений (QAA), скелетные модели поз человека, р

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
