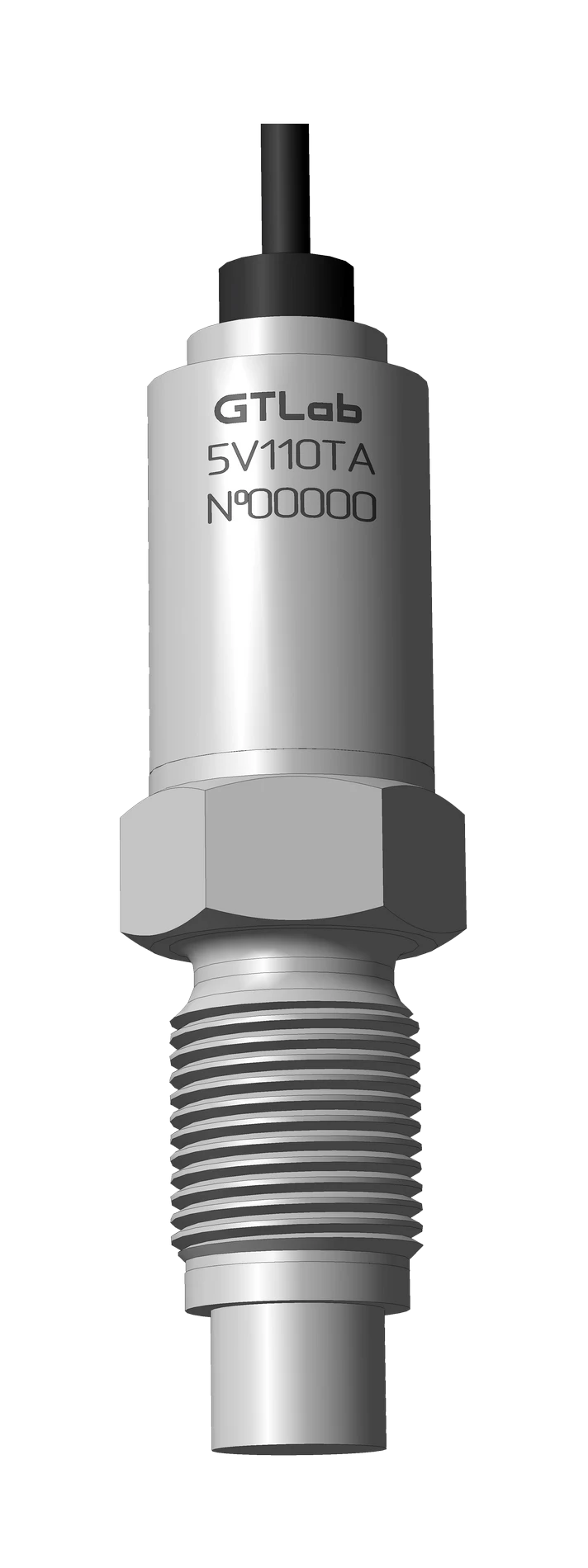

Dynamic pressure sensors 5V110TA-XX

Vibration Measurement Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Dynamic pressure sensors with voltage output are used for research and control of dynamic processes in internal combustion engines, gas turbine engines, hydraulic and pneumatic systems. They are intended for measuring pressure in shock and detonation waves in gas and liquid media.

Technical Specifications

Upper measurement limit	0,6 MPa \| 60 MPa \| 100 MPa \| 160 MPa \| 250 MPa
Conversion factor	8 000 mV/MPa \| 80 mV/MPa \| 50 mV/MPa \| 30 mV/MPa \| 20 mV/MPa
Limits of permissible basic error reduced to the upper limit of measurement	± 2,5%
Natural frequency in fixed state	> 100 kHz
Acceleration sensitivity	< 0.00005 MPa/g 1g = 9.807 m-s-2 or 10 m-s-2 = 1.02 g
Operating temperature range	- 60 ... + 125 °?
Output impedance	< 100 ohms
Power supply: ? voltage ? current	+ (15 ... 30) V 2 ... 20 mA
DC output voltage level	8 ... 11 ?
Sensing element material	lithium niobate (5V110TA-6) \| quartz
Membrane material	stainless steel
Housing material	stainless steel
Degree of protection against external influences	IP68
Weight (without cable and connector)	25 ?
Type of product according to PP RF 616	Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
